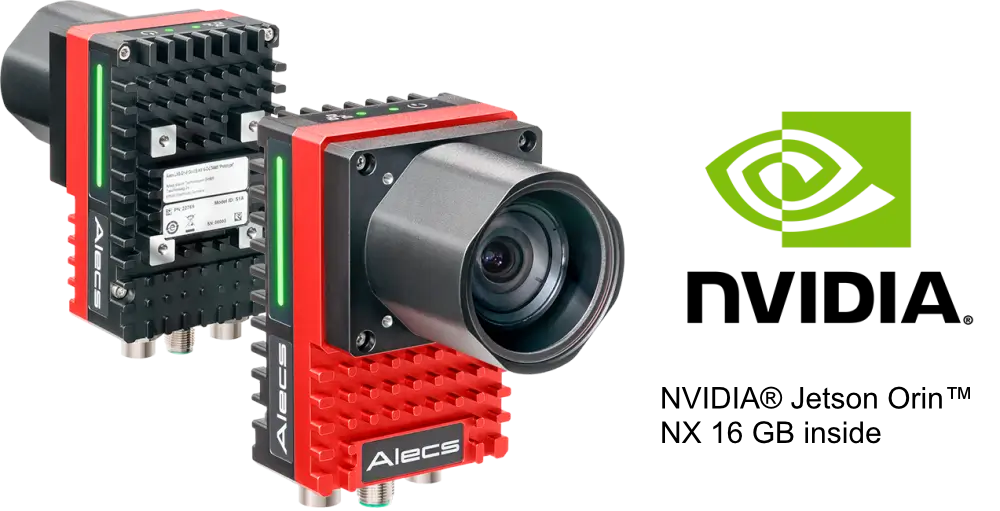

The Alecs Edge AI Smart Camera, powered by PEKAT VISION 4, combines high-performance Sony® image sensors, NVIDIA® Jetson Orin™ AI computing, and deep learning software in a single industrial device. Designed for demanding machine vision applications, it delivers fast AI model training, real-time inference, and reliable edge AI inspection directly on the production line.

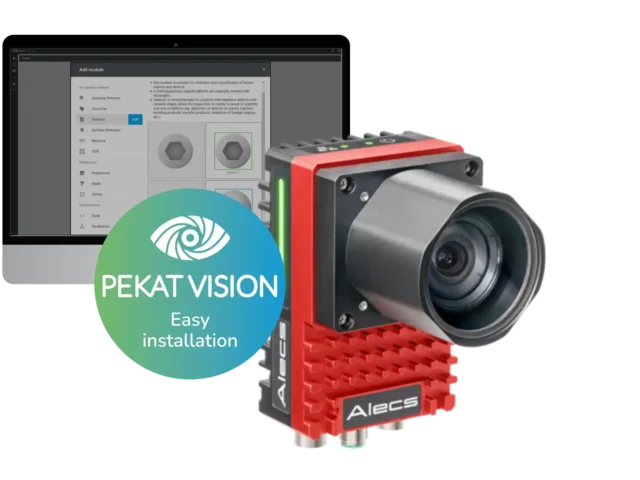

Available with either a 5.1 MP or 12.4 MP Sony® image sensor and compatible with a wide range of C-Mount lenses, Alecs provides the flexibility to optimize the field of view, working distance, and image resolution for virtually any inspection task. PEKAT VISION’s intuitive web-based interface enables fast deployment, while scripting support allows advanced customization for complex applications.
Alecs Edge AI Smart Camera Highlights
Key Specifications
Alecs combines powerful NVIDIA® Jetson Orin™ computing with high-resolution Sony® image sensors to provide an advanced edge AI platform for industrial inspection. Together with PEKAT VISION 4, it enables rapid AI model training, real-time inference, and reliable deployment for demanding machine vision applications. Flexible optics, generous on-board storage, and a rugged industrial design make Alecs an excellent choice for both new installations and future expansion.
| Specifications | ||
|---|---|---|
| Feature | Camera Model | |
| Alecs G1-510 NX16 | Alecs G1-1242 NX16 | |
| SoM (system on module) | NVIDIA® Jetson Orin™ NX16 | |
| Extended memory (non-volatile) | 128 GByte (NVME SSD) | |
| Interface | IEEE 802.3 1000BASE-T | |
| Resolution | 2464 (H) × 2064 (V) | 4128 (H) × 3008 (V) |
| Spectral range | 300 to 1100 nm | |
| Sensor | Sony IMX548 | Sony IMX545 |
| Sensor type | CMOS | |
| Shutter mode | GS (Global shutter) | |
| Sensor size | Type 1/1.8 | Type 1/1.1 |
| Pixel size | 2.74 µm × 2.74 µm | |
| Lens mount (default) | C-Mount | |
| Max. frame rate at full resolution | 81 fps (internal speed) | 40 fps (internal speed) |
Connectivity
Alecs provides comprehensive connectivity for industrial automation through Gigabit Ethernet, configurable digital I/O, dedicated lighting interfaces, and industrial M12 connectors. Together with PEKAT VISION communication options, including Siemens S7 PLC, TCP/IP, and software SDKs (C, C#, Python), the camera integrates seamlessly into production lines, inspection systems, and custom automation solutions.
| LAN |
|---|
| IEEE 802.3 1000BASE-T |
| General Purpose Inputs/outputs (GPIOs) |
|---|
| 2 Inputs |
| 2 Outputs |
| 1 Trigger input |
| 1 Strobe output |
Environmental Conditions & Dimensions
Designed for continuous industrial operation, Alecs combines an IP67-rated housing with excellent resistance to vibration, shock, dust, and moisture. Its wide operating temperature range ensures dependable performance across a broad variety of manufacturing environments.
| Operating Conditions/Dimensions | ||
|---|---|---|
| Operating Temperature | -20 °C to +65 °C (housing) | |
| Power requirements (DC) | 24 VDC | |
| Power consumption | SoM: Max. 10 W to 25 W | Carrier board: Max. 2.0 W | Cam- era: Max. 3.2 W || Idle state: 8.5 W | |
| Mass | Without lens (with lens tube): 810 g (LT4649) | 820 g (LT4670) | |
| Body dimensions (L × W × H in mm) | 102 × 72 × 111.75 (LT4649) | 122.4 × 72 × 111.75 (LT4670) | |
Comprehensive Accessories

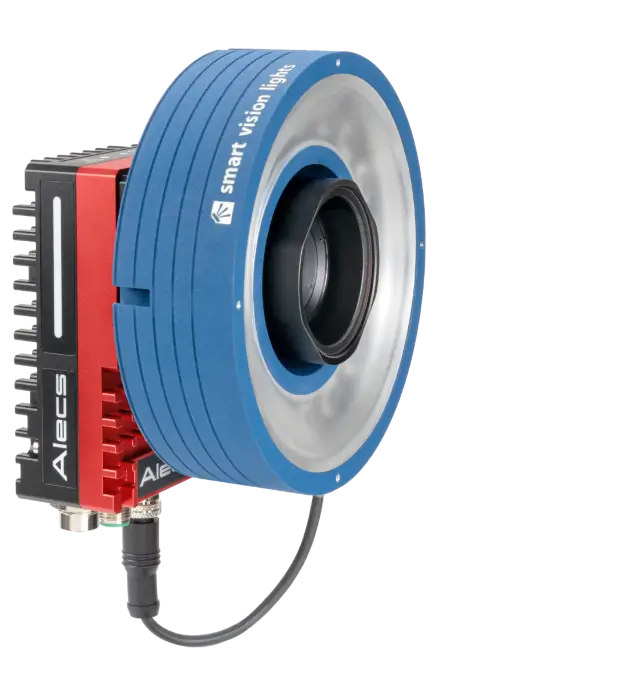

A complete range of accessories simplifies system design and installation. Available accessories include the RMX140 ring light, optimized C-Mount lenses, IP67 lens tubes, and dedicated Ethernet, power, I/O, and lighting cables, allowing the camera to be tailored to a wide variety of industrial inspection applications.

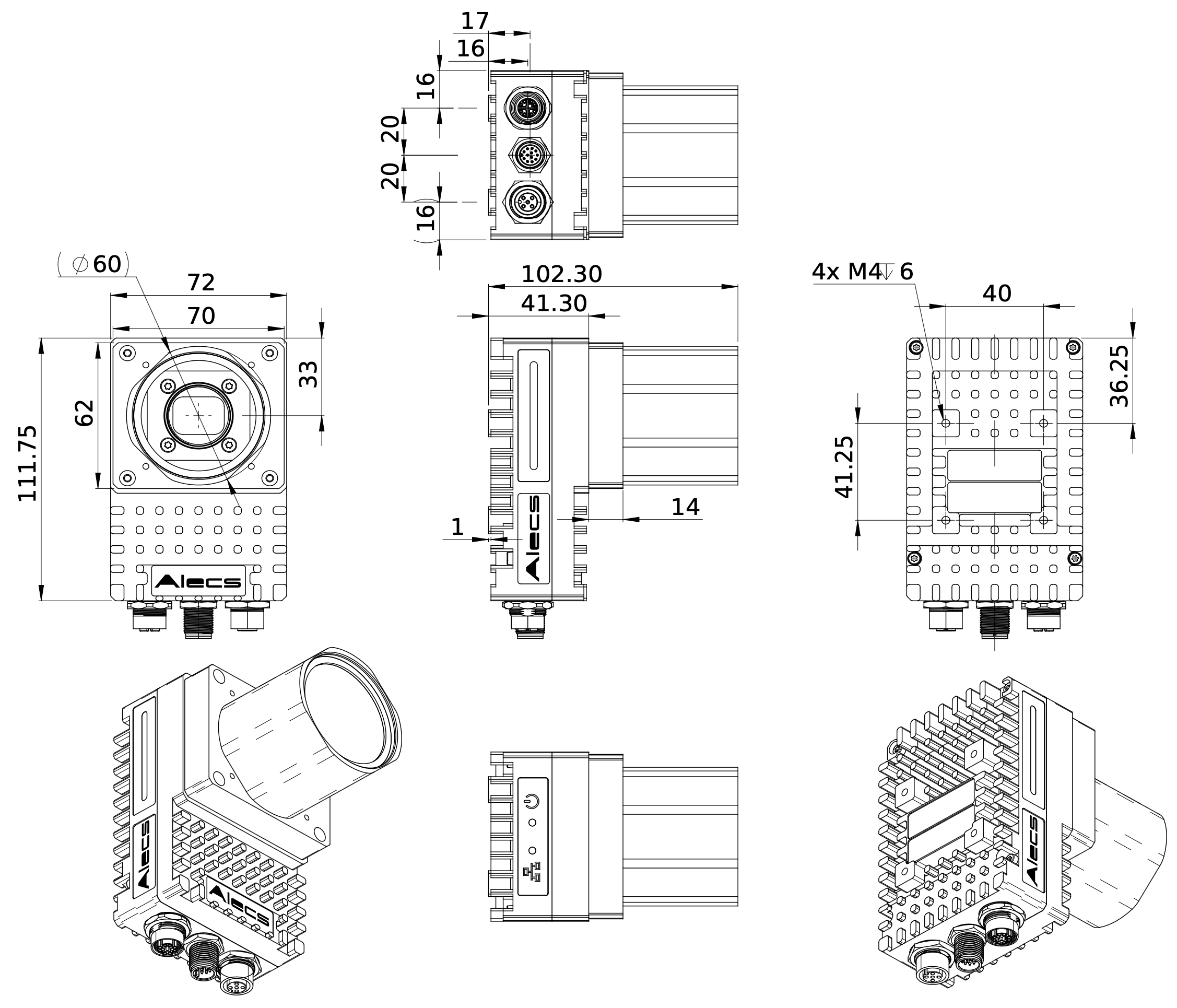

DIMENSION DRAWING
