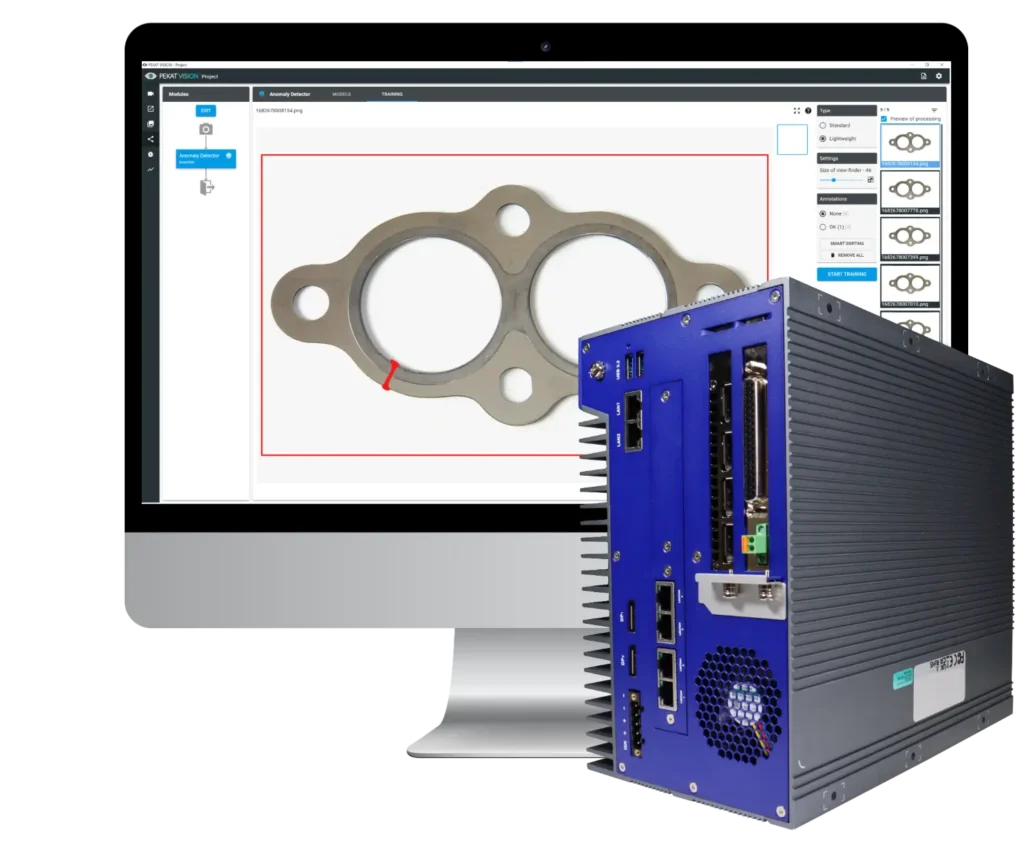

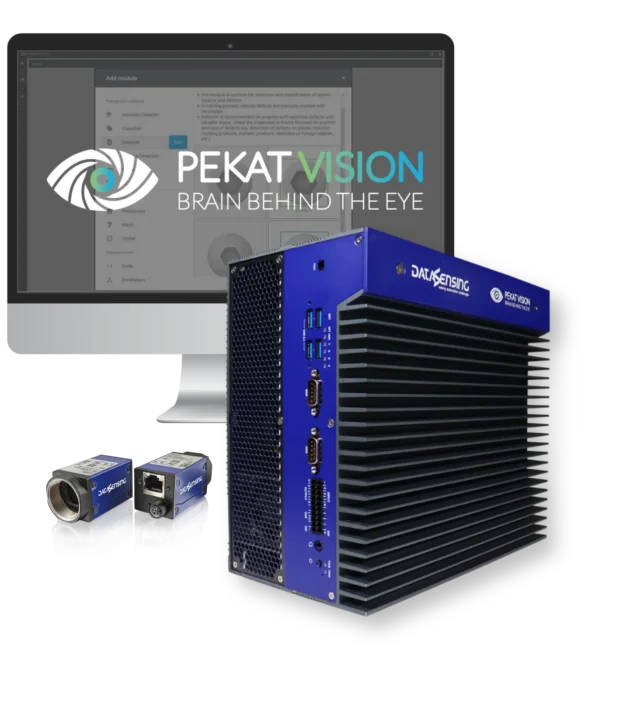

The MX-G2000 Vision Processor combines high-performance industrial hardware with both AI-based and rule-based machine vision software in one powerful platform.
Pre-installed with PEKAT VISION deep-learning software and optionally expandable with the IMPACT Software Suite, it enables manufacturers to solve a wide range of inspection tasks — from complex defect detection to precise measurement and code reading.
Designed for demanding production environments, the MX-G2000 delivers reliable, real-time inspection directly on the factory floor — without the need for external PCs or cloud processing.
GPU-Powered Vision Processor for Demanding Applications
The MX-G2000 supports up to four independent PoE GigE cameras simultaneously. It integrates seamlessly with Datasensing area scan cameras (up to 24 MP, color or monochrome) as well as line scan cameras for high-speed web inspection and defect detection.
Training and inference run directly on the embedded NVIDIA GPU, eliminating the need for external PCs, servers, or cloud computing. This reduces hardware complexity, network load, and cybersecurity risks while ensuring fast, reliable inspection performance.
Deep Learning & Rule-Based Vision in One Platform
By combining deep-learning and rule-based technologies, the MX-G2000 enables manufacturers to choose the optimal inspection method for each task. From unpredictable surface defects to precise geometric measurements, both approaches operate seamlessly within one integrated system.
High-Performance Industrial Computing
Powered by an NVIDIA® RTX™ A4000 GPU (16 GB memory) and a 12th generation Intel® Core™ i5 processor, the MX-G2000 delivers the computing power required for high-resolution image processing, complex inspection logic, and real-time decision-making. All components operate within a stable and industry-proven Windows 10 IoT Enterprise 2021 LTSC environment.
True Edge Processing
All inspection tasks — including AI model training and inference — are executed directly on the device. No external computing infrastructure is required. This edge-based architecture ensures fast response times, reduced latency, and greater data security.
Optimized Total Cost of Ownership
With support for up to four independent cameras on a single processor, the MX-G2000 consolidates inspection tasks into one powerful system. This reduces hardware footprint, simplifies integration, and maximizes return on investment.

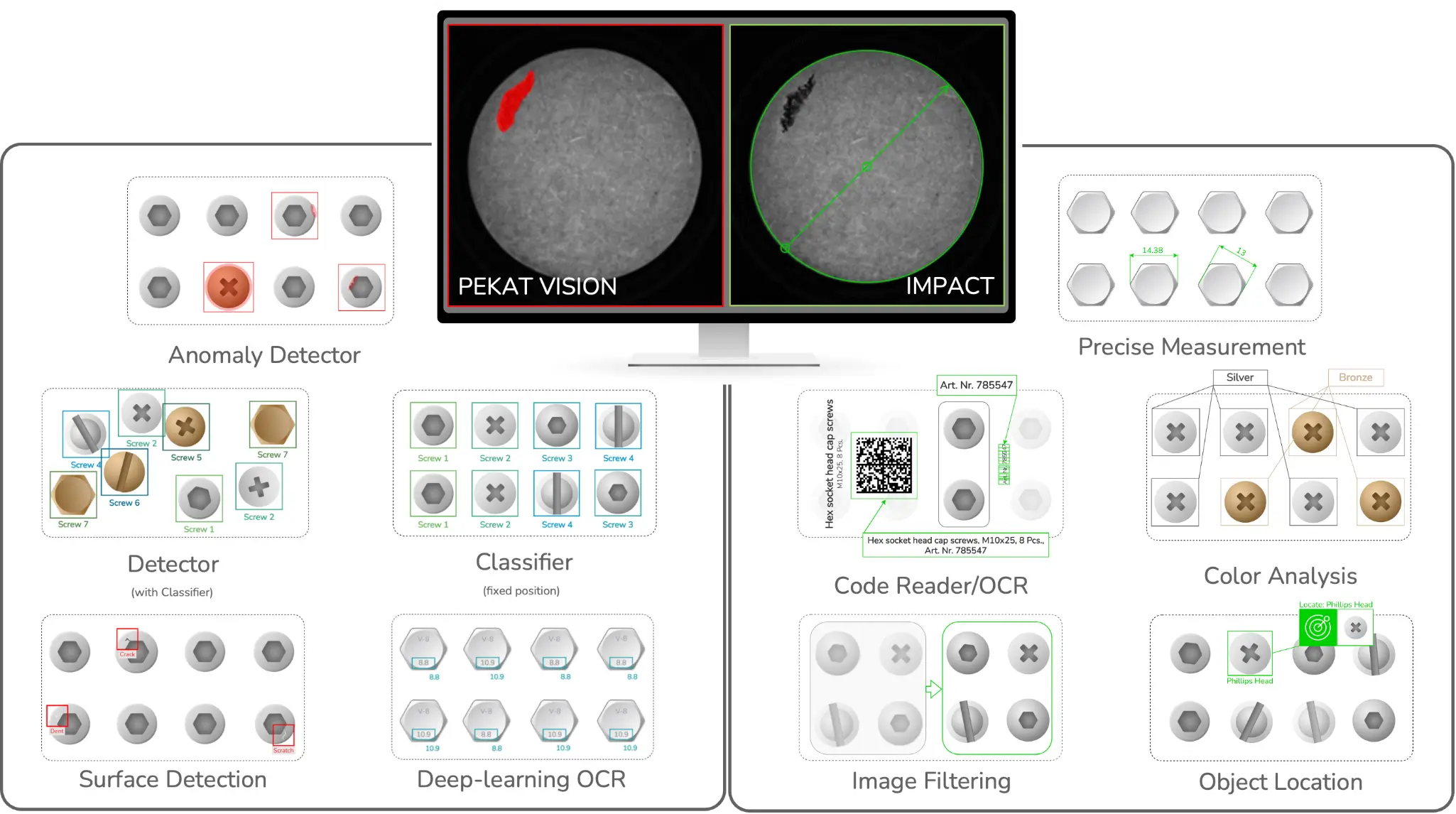

The Fusion of Deep-learning and Rule-based Methods
At the core of the MX-G2000 is the integration of two complementary inspection approaches.
PEKAT VISION deep-learning software excels at detecting unpredictable defects, surface anomalies, object presence, classification tasks, and character recognition across complex materials and varying conditions.
The optional IMPACT Software Suite provides over 100 rule-based inspection tools, including image pre-processing, precise measurement, color analysis, object location, and 1D/2D code reading. It enables the creation and management of inspection programs and operator interfaces while supporting industrial communication standards.
Together, these technologies deliver a flexible and comprehensive machine vision solution for modern industrial automation.
Advanced Computing Architecture

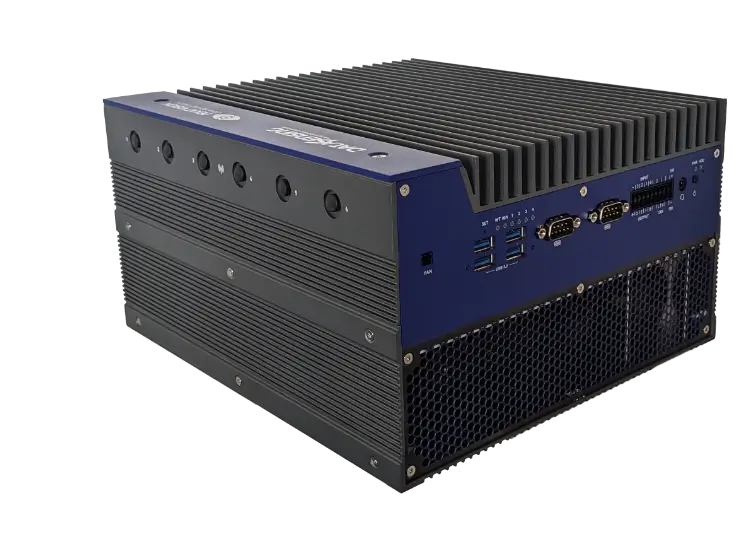

Designed for demanding manufacturing environments, the MX-G2000 integrates the latest GPU and CPU technologies to handle even the most complex inspection scenarios.
From rapid AI model training to high-speed inspection of large, high-resolution images and applications combining hundreds of tools, the system delivers consistent performance and long-term reliability.
| GENERAL DATA | |
|---|---|
| Description | MX-G2000-4-B-2, 4 GIG-E, PNP/NPN, WIN10 |
| CPU | Intel Core i5-12500TE – 6-core |
| GPU | Nvidia RTX A4000 GPU – 16GB |
| Storage | 512 GB M.2 NVMe SSD |
| System Memory | 32 GB SO-DIMM DDR4 2666 MHz |
| Operating System | Windows 10 IOT Enterprise 2021 LTSC |
| Graphics | 2x DisplayPort (Full-size, DP++, HDMI 1.4) |
| Keyboard/Mouse | 6x USB 3.2 Gen 2 Type-A |
| ELECTRICAL DATA | |
|---|---|
| Supply Voltage | 12 … 48 Vdc |
| Power Consumption | 100 W (typical, 480W maximum) |
| MECHANICAL DATA | |
|---|---|
| Dimensions | 267 x 240 x 143 mm (10.5 x 9.45 x 5.60 in.) |
| Housing Material | Aluminum-magnesium alloy housing |
| Weigh | 7.5 Kg |
| TEST/CERTIFICATIONS | |
|---|---|
| Shocks | k20G peak acceleration (11ms duration) with SSD (IEC60068-2-27 EMC: CE/FCC Class A) |
| Vibrations | 5~500Hz, 1.5Grms@with SSD (IEC60068-2-64) |
| ENVIRONMENTAL DATA | |
|---|---|
| Operating Temperature | -40 … 50 °C (-40…+122 °F) |
| Mechanical Protection | IP20 |
| Storage Temperature Max | -40 … 85 °C (-40…+185 °F) |
Industrial Connectivity and Integration
The MX-G2000 provides extensive connectivity options to ensure seamless integration into existing automation systems. A wide range of industrial interfaces and legacy ports ensures compatibility with diverse production equipment.
| INPUT / OUTPUT / COMMUNICATION | |
|---|---|
| I/O | 16 IN / 16 OUT opto-isolated PNP or NPN, 200μs response time |
| Comm. Connectivity | Supports EtherNet/IP, Profinet, Modbus TCP, OPC and HTTP* |
| Serial Communications | 2x RS-232 serial port |
| Camera Interface | 4x 1000 Mbps Base-T, PoE camera ports (Up to 15 W per channel) |
| Network Interface | 2x LAN ports – 2.5 Gbit/s Ethernet |
The optional IMPACT Software Suite supports standard communication protocols including PROFINET, EtherNet/IP, OPC, and Modbus, enabling straightforward communication with PLCs, robots, and factory control systems.

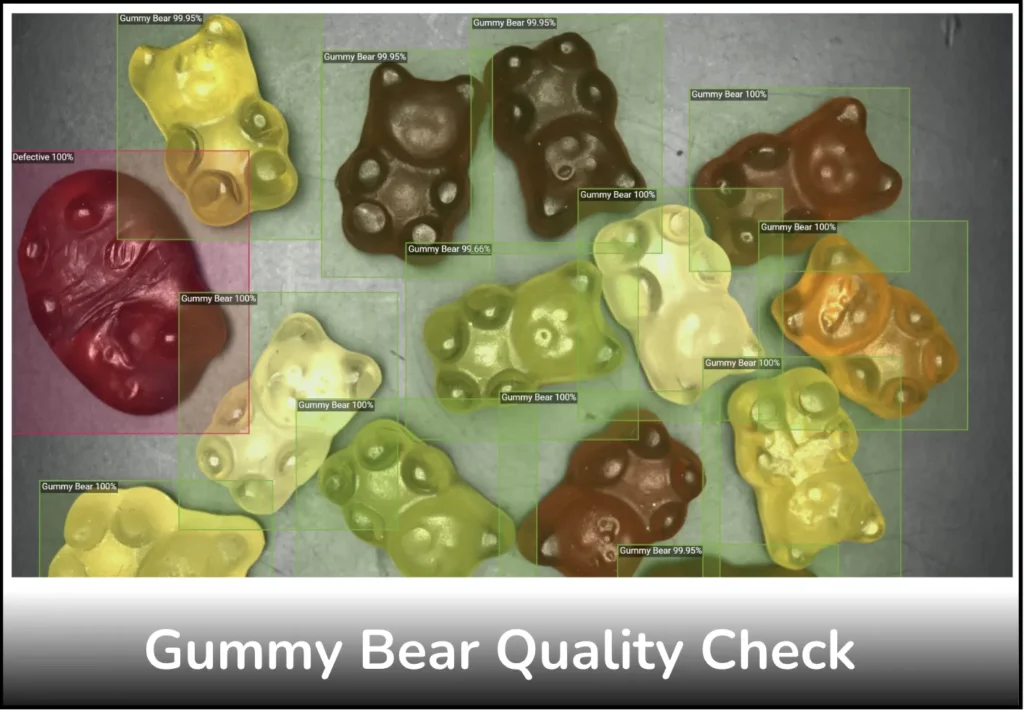

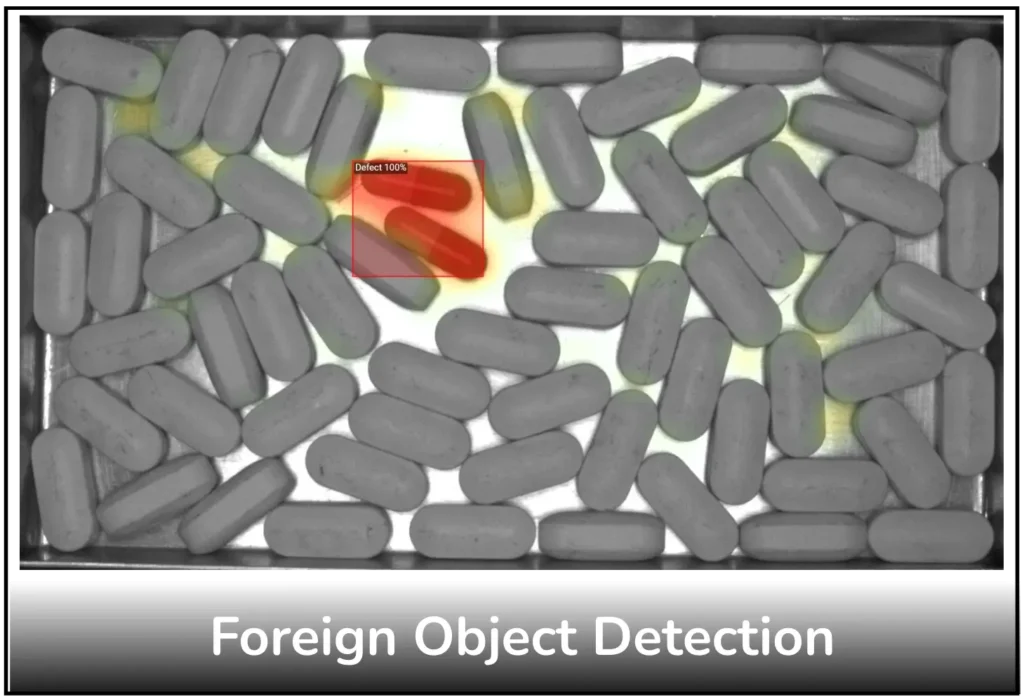

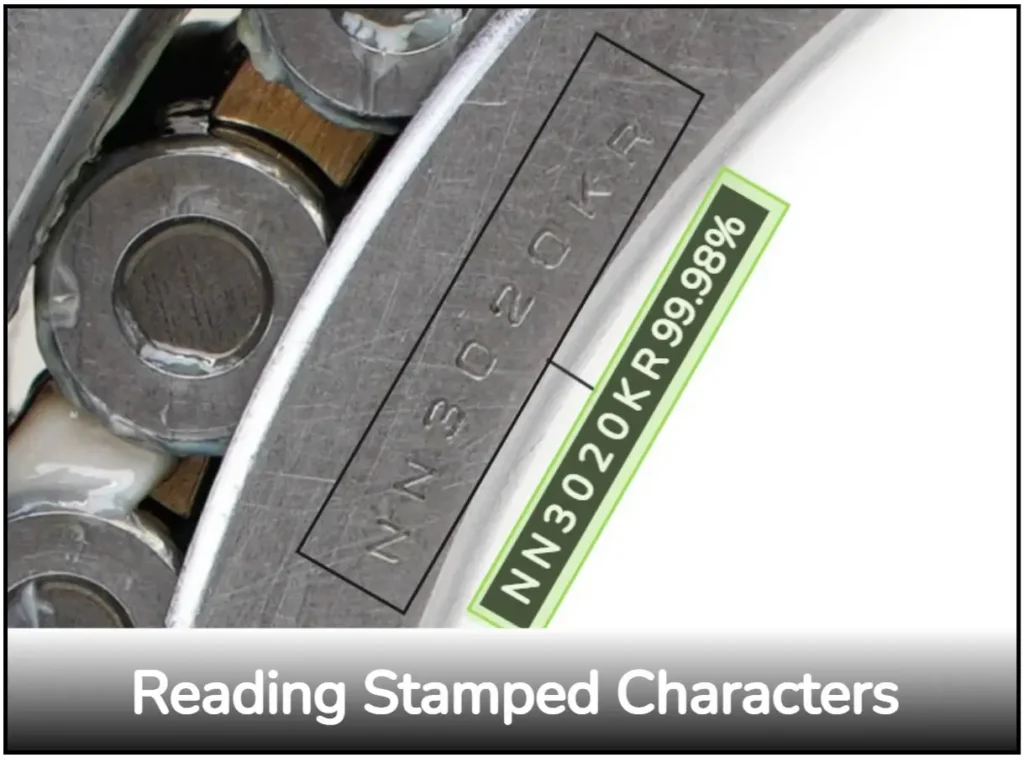

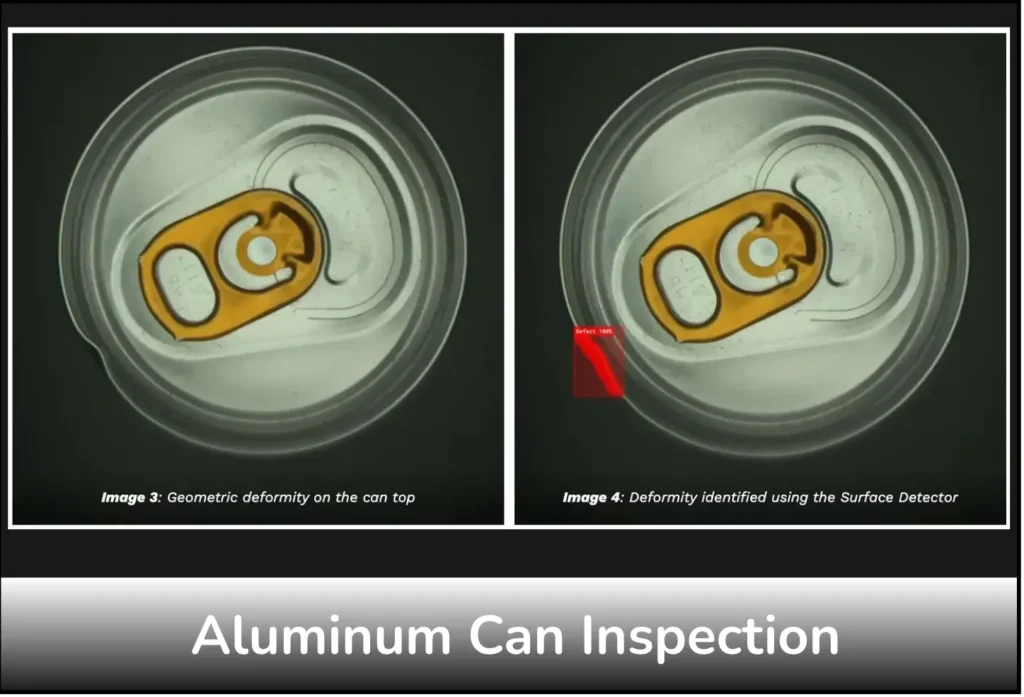

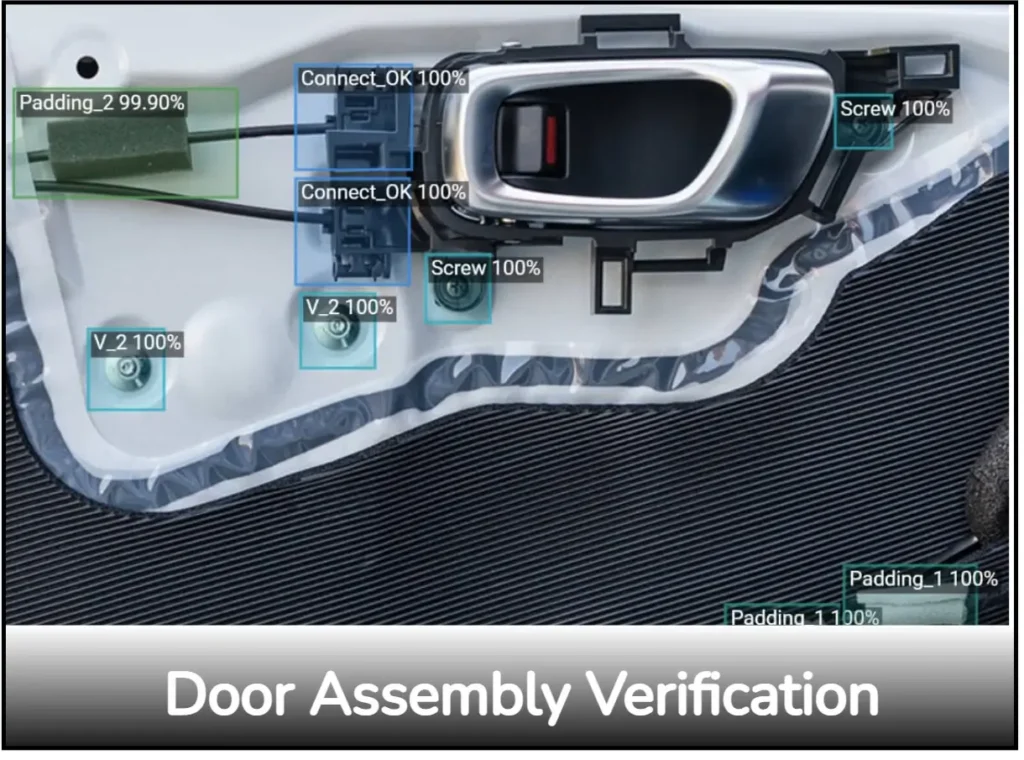

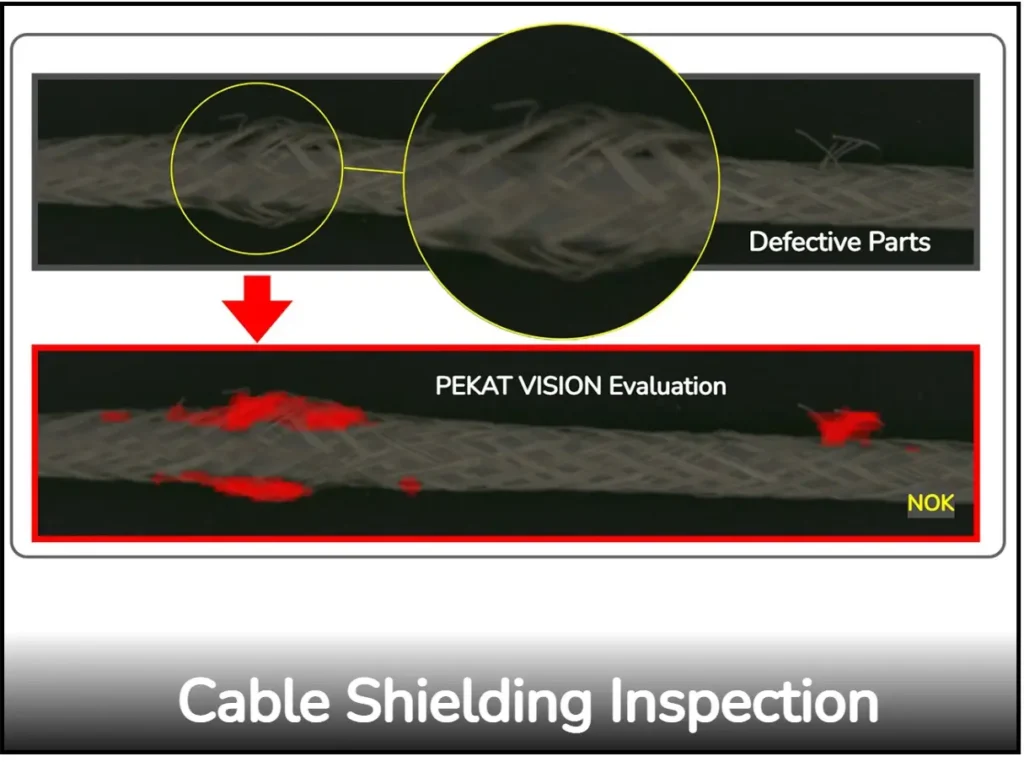

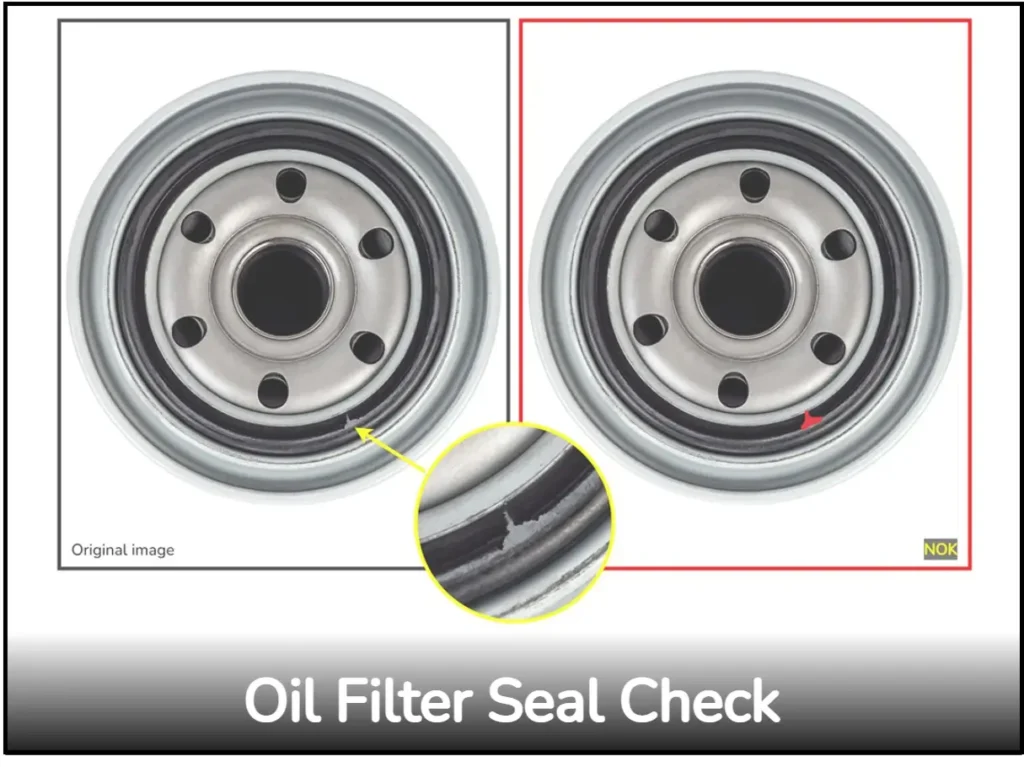

Designed for Diverse Industries
The MX-G2000 Vision Processor enables reliable deployment across a broad range of industries, including automotive, food & beverage, pharmaceuticals, electronics, and general manufacturing.
Its robust industrial design, high processing power, and integrated software environment ensure dependable inspection performance even in demanding production conditions.

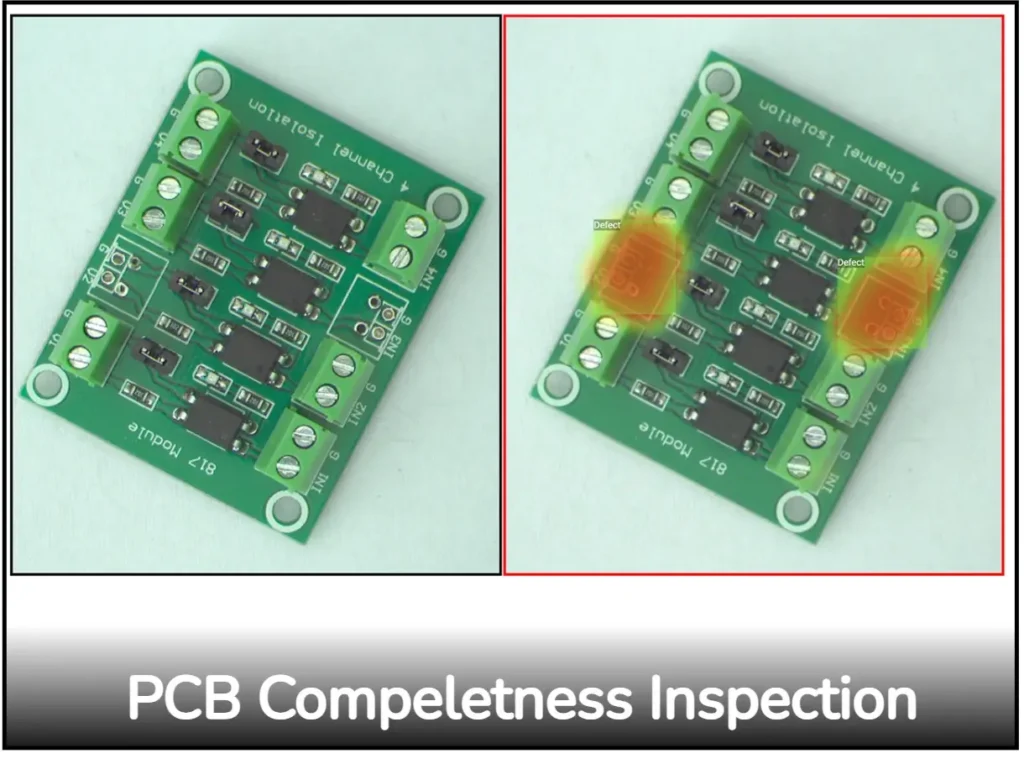

From defect detection and measurement to identification and guidance, the MX-G2000 provides a scalable machine vision platform ready for modern manufacturing.

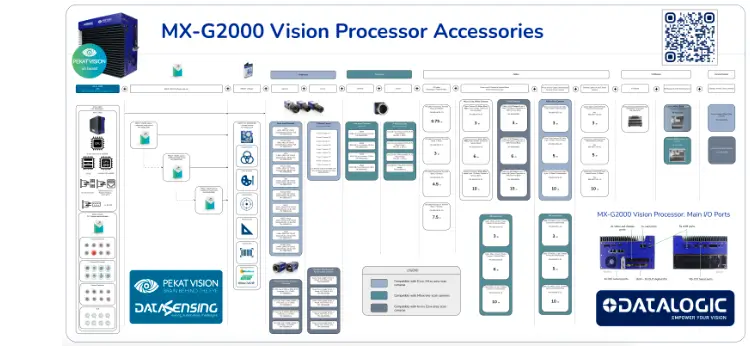

Accessories

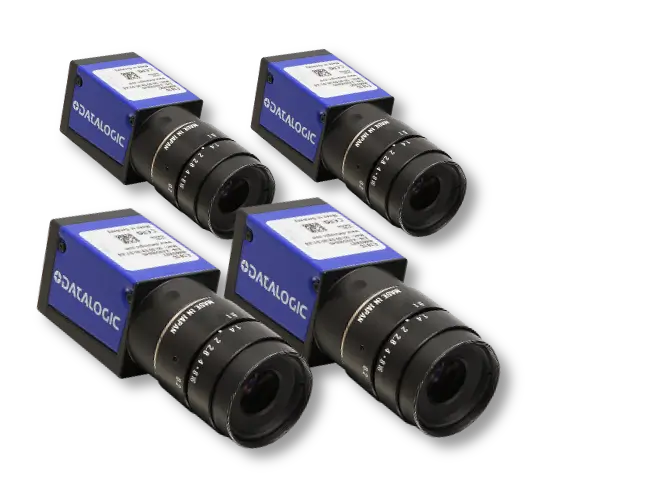

AREA SCAN CAMERAS
| Description | Part Number |
|---|---|
| Camera, E101, Gig-E, 659 x 480, 300 FPS, Grayscale, 1/4” CMOS | 959933022 |
| Camera, E101C, Gig-E, 659 x 480, 300 FPS, Color, 1/4” CMOS | 959933023 |
| Camera, E151, Gig-E, 1280 x 1024, 75 FPS, Grayscale, 1/2” CMOS | 959933024 |
| Camera, E151C, Gig-E, 1280 x 1024, 75 FPS, Color, 1/2” CMOS | 959933025 |
| Camera, E181, Gig-E, 1920 x 1200, 48 FPS, Grayscale, 2/3” CMOS | 959933026 |
| Camera, E181C, Gig-E, 1920 x 1200, 48 FPS, Color, 2/3” CMOS | 959933027 |
| Camera, M197, Gig-E, 2592 x 1944, 14 FPS, Grayscale, 1/2.5” CMOS | 959931010 |
| Camera, M197C, Gig-E, 2592×1944, 14 FPS, Color, 1/2.5” CMOS | 959931011 |
| Camera, E198, Gig-E, 2448 x 2048, 20 FPS, Grayscale, 2/3” CMOS | 959933044 |
| Camera, E198C, Gig-E, 2448 x 2048, 20 FPS, Color, 2/3” CMOS | 959933045 |
E2-SERIES: HIGH RESOLUTION AREA SCAN CAMERAS
| E2-Series: High Resolution Area Scan Cameras | |
|---|---|
| Camera, E2-123, Gig-E, 4096 x 3000, 9 FPS, Grayscale, 1/1.1″ CMOS | 959980011 |
| Camera, E2-123C, Gig-E, 4096 x 3000, 9 FPS, Color, 1/1.1″ CMOS | 959980012 |
| Camera, E2-244, Gig-E, 5328 x 4608, 4 FPS, Grayscale, 1.2″ CMOS | 959980013 |
| Camera, E2-244C, Gig-E, 5328 x 4608, 4 FPS, Color, 1.2″ CMOS | 959980014 |
LINE SCAN CAMERAS
| GigE Line Scan Cameras | |
|---|---|
| Camera, M565, Gig-E, 2048 Linescan, 51KHz, Grayscale | 959931002 |
| Camera, M570, Gig-E, 4096 Linescan, 26KHz, Grayscale | 959931003 |
| Camera, M575, Gig-E, 6144 Linescan, 17KHz, Grayscale | 959933020 |
| Camera, M580, Gig-E, 8192 Linescan, 12KHz, Grayscale | 959933021 |
C-MOUNT LENSES*
| C-Mount Lenses for Area Scan Cameras | ||
|---|---|---|
| LEN-KOW-LM50XC | Lens, Kowa, 50mm, C-Mount, 4/3” Format, M37.5 x 0.5 filter thread, LM50CX | 95A900091 |
| LEN-KOW-LM12XC | Lens, Kowa, 12mm, C-Mount, 4/3” Format, M55 x 0.75 filter thread, LM12CX | 95A900087 |
| LEN-KOW-LM16XC | Lens, Kowa, 16mm, C-Mount, 4/3” Format, M40.5 x 0.5 filter thread, LM16CX | 95A900088 |
| LEN-KOW-LM25XC | Lens, Kowa, 25mm, C-Mount, 4/3” Format, M40.5 x 0.5 filter thread, LM25CX | 95A900089 |
| LEN-KOW-LM35XC | Lens, Kowa, 35mm, C-Mount, 4/3” Format, M37.5 x 0.5 filter thread, LM35CX | 95A900090 |
*For the full range of available area scan camera C-mount lenses, contact your sales representative.
F-MOUNT LENSES
| F-Mount Lenses for Line-Scan Cameras | |
|---|---|
| Description | Part number |
| Lens, Navitar, F-Mount, Focal Length 28mm, M72 x 0.75 Filter Thread | 927-1-19711 |
| Lens, Navitar, F-Mount, Focal Length 35mm, M52 x 0.75 Filter Thread | 927-1-19712 |
| Lens, Navitar, F-Mount, Focal Length 50mm, M52 x 0.75 Filter Thread | 927-1-19713 |
I/O BOARD
| DESCRIPTION | PART NUBER |
|---|---|
| I/O Board, MX-Series Processors, Female DB37, DIN Rail Mountable, no isolation | 248-0110 |
I/O CABLES
| DESCRIPTION | PART NUMBER |
|---|---|
| Cable, I/O, MX-Series, Processor to Terminal Block, 075 Meter | 606-0675-.75 |
| Cable, I/O, MX-Series, Processor to Terminal Block, 3 Meter | 606-0675-3 |
| Cable, I/O, MX-Series, Processor to Terminal Block, 4.5 Meter | 606-0675-4.5 |
| Cable, I/O, MX-Series, Processor to Terminal Block, 7.5 Meter | 606-0675-7.5 |
Power and I/O CABLES TO TERMINAL BLOCK, M and E SERIES CAMERAS
| DESCRIPTION | PART NUMBER |
|---|---|
| Cable, Camera I/O, M1xx, E1xx, M5xx, 6 pin, 3 Meter, Camera to Terminal Block | 606-0674-03 |
| Cable, Camera I/O, M1xx, E1xx, M5xx, 6 pin, 5 Meter, Camera to Terminal Block | 606-0674-05 |
| Cable, Camera I/O, M1xx, E1xx, M5xx, 6 pin, 10 Meter, Camera to Terminal Block | 606-0674-10 |
| Cable, M5xx, 12 pin, 3 Meter, Camera to Terminal Block | 606-0673-03 |
| Cable, M5xx, 12 pin, 5 Meter, Camera to Terminal Block | 606-0673-05 |
| Cable, M5xx, 12 pin, 10 Meter, Camera to Terminal Block | 606-0673-10 |
I/O CABLE UNTERMINATED, M and E SERIES CAMERAS
| DESCRIPTION | PART NUMBER |
|---|---|
| M1xx, E1xx Cameras I/O Cable, 6 pin, 3 Meter, Unterminated | 606-0672-03 |
| M1xx, E1xx Cameras I/O Cable, 6 pin, 5 Meter, Unterminated | 606-0672-05 |
| M1xx, E1xx Cameras I/O Cable, 6 pin, 10 Meter, Unterminated | 606-0672-10 |
| Cable, I/O, M5xx, 12 pin, 3 Meter, Camera to Unterminated | 606-0671-03 |
| Cable, I/O, M5xx, 12 pin, 5 Meter, Camera to Unterminated | 606-0671-05 |
| Cable, I/O, M5xx, 12 pin, 10 Meter, Camera to Unterminated | 606-0671-10 |
ETHERNET CABLES, M and E SERIES CAMERAS
| DESCRIPTION | PART NUMBER |
|---|---|
| Cable, Gig-E, CAT6, Horizontal Mold, 3 Meter | 606-0677-M1-03 |
| Cable, Gig-E, CAT6, Horizontal Mold, 5 Meter | 606-0677-M1-05 |
| Cable, Gig-E, CAT6, Horizontal Mold, 10 Meter | 606-0677-M1-10 |
I/O BOARDS, M and E SERIES CAMERAS
| DESCRIPTION | PART NUMBER |
|---|---|
| I/O Board, M1xx, E1xx Cameras, w / isolation | 661-0399 |
| I/O Board, M5xx Camera, w / isolation | 661-0401 |
BRACKETS, M and E Series CAMERAS
| DESCRIPTION | PART NUMBER |
|---|---|
| Camera Mount, M1xx, E1xx Cameras | 95A903029 |
PEKAT VISION / IMPACT Software Licensing
MX-G2000 VISION PROCESSOR (inc. PEKAT VISION License for 1 camera port)
| DESCRIPTION | PART NUMBER |
|---|---|
| MX-G2000 Vision Processor with PEKAT VISION software for 1 camera port [MX-G2000-4-B-2, 4 GIG-E, PNP/NPN, WIN10] | 959910007 |
ADDITIONAL PEKAT VISION / IMPACT SOFTWARE LICENSES / DONGLES
| DESCRIPTION | PART NUMBER |
|---|---|
| 1x Additional PEKAT VISION License (Adds 1 Camera source) | 959910008 |
| Dongle, IMPACT GO, ENHANCED – Enables IMPACT software – all 4 camera sources | 93ACC0310 |
All PEKAT VISION software licenses sold with MX-G2000 vision processors include all deep learning modules and enable both training and inference on the MX-G2000. No additional subscription, renewal or recurring fees are required.

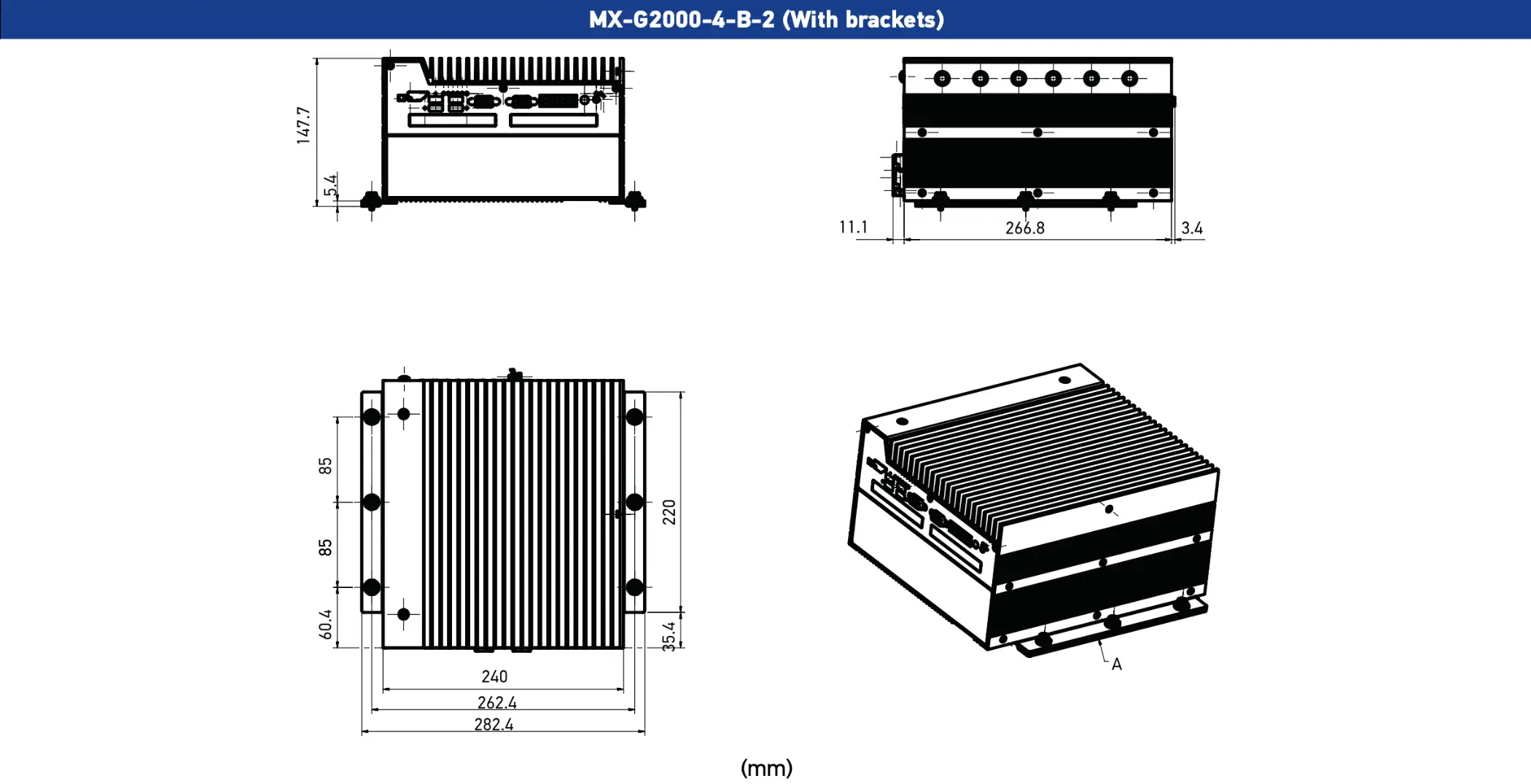

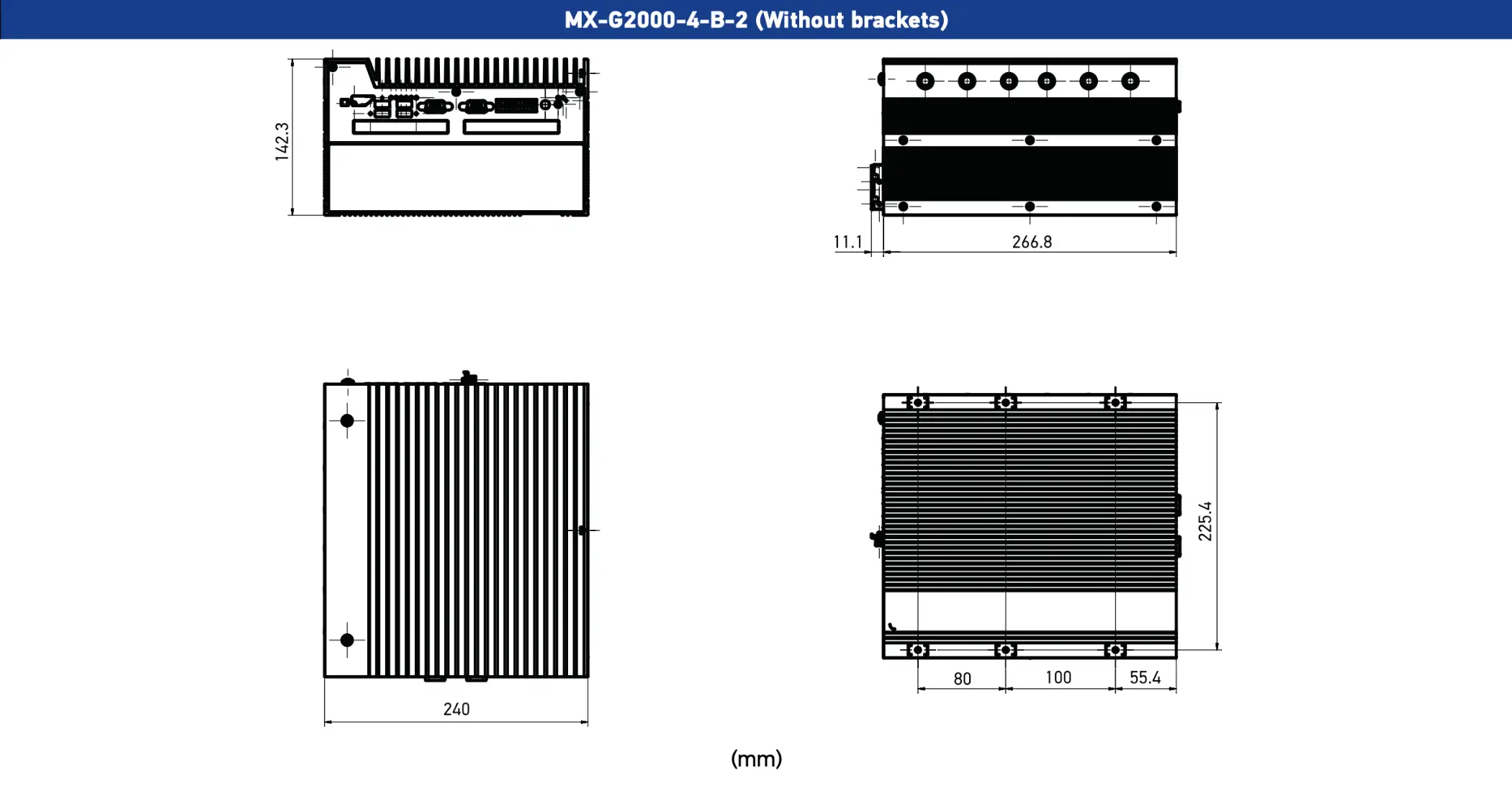

MECHANICAL DRAWINGS
Frequently Asked Questions
Is camera included with the Vision Processor?
No. It has to be purchased separately, but Datasensing offers a huge selection of color and monochrome cameras, including area scan cameras with up to 20 MP resolution and line scan cameras ideal for web inspections. Of course, plenty of accessories such as lenses and filters are also available.
Is the software included?
Based on your specific needs, you can select from a number of licensing options, starting with a PEKAT VISION software license supporting one camera up to a full license supporting four cameras and the IMPACT Suite. Contact our sales team to get a quote.
Can I use the Vision Processor as a standalone PC without internet connection on the factory floor?
Absolutely. One of the many advantages of the Vision Processor is that you don’t need an internet connection either for training or to run inferences. Everything can be done on the Vision Processor itself.
Is the IMPACT software license included with the purchase of the MX-G2000 Vision Processor?
The IMPACT license is optional and may be included. Please contact our sales representatives for all available options or a quote.
What type of PEKAT VISION license is included? Do I need to renew it annually?
No, you do not need to renew the license. With the purchase, you will receive a lifetime license of PEKAT VISION. Depending on your choice, you will be able to run PEKAT VISION training and processing on 1 to 4 cameras.
Is the license limited to the MX-G2000 Vision Processor?
Yes, all licenses are limited to the device. If you would like to purchase a license not tied to any specific device, please contact our sales team.
Can I run the IMPACT and PEKAT VISION software simultaneously within one inspection?
Yes, if you have purchased the Vision Processor with both software, you can run them simultaneously within a single inspection. Upon starting the MX-G2000 Vision Processor, you will be presented with the option to launch either the PEKAT VISION software alone or both the IMPACT and PEKAT VISION software together.
When using the combined software, PEKAT VISION operates within the IMPACT environment. This integration enables a seamless workflow, allowing you to execute tasks such as image preprocessing and measurements in IMPACT, followed by anomaly inspection in PEKAT VISION, all within a fraction of a second.
The anomaly inspection results are then displayed together with IMPACT’s results within the same interface. The overall result can be transmitted to other devices using various industrial protocols such as Ethernet/IP, Modbus, and OPC.
Can I follow the inspection results on screen?
Yes. If you run PEKAT VISION only, you can follow the inspection in real-time within the standard software environment or in a limited operator view, designed for use on the factory floor. Similarly, if you use the IMPACT software, you have two options: you can use the standard IMPACT view or easily create your own operator HMI (human-machine interface) that can display both – outputs from PEKAT VISION and IMPACT.
Can the MX-G2000 Vision Processor handle multiple cameras simultaneously?
Yes, it can handle up to 4 independent PoE GigE cameras connected simultaneously.
Is the MX-G2000 Vision Processor suitable for industrial environments?
Absolutely. It is a rugged computer specifically designed for harsh industrial environments.
How easy is it to integrate the MX-G2000 Vision Processor into existing production lines?
The MX-G2000 Vision Processor is designed to seamlessly integrate into existing production lines. Both applications, PEKAT VISION and IMPACT, facilitate straightforward integration, often without the need for programming. Additionally, the MX-G2000 Vision Processor offers a selection of new and legacy ports, ensuring maximum compatibility with a wide range of industrial systems and equipment.
What operating systems run on the MX-G2000 Vision Processor?
The MX-G2000 Vision Processor runs on Windows 10 IoT Enterprise 2021 LTSC.
