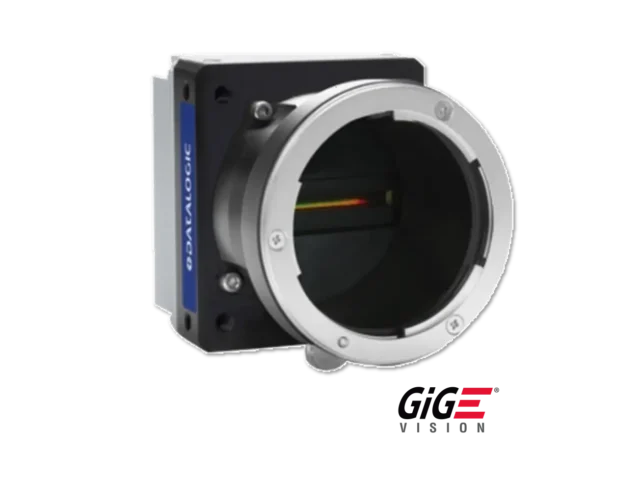

Designed for demanding industrial applications, Datalogic Line Scan Cameras deliver outstanding performance for the inspection of long parts, cylindrical objects, or continuous materials like webs, film, or printed labels.
Using the GigE Vision standard and compatible with the powerful MX-E45, MX-E90, and MX-G2000 Vision Processors, these compact, high-resolution cameras integrate easily into space-constrained setups — offering speed, precision, and reliability in high-throughput environments.
OPTIMIZED FOR CONTINUOUS INSPECTION
Line scan cameras are designed for inspecting continuous or rotating objects, such as webs, extrusions, and cylindrical surfaces. With resolutions from 2K to 8K and high-speed line rates, they deliver sharp, distortion-free images even at high production speeds.

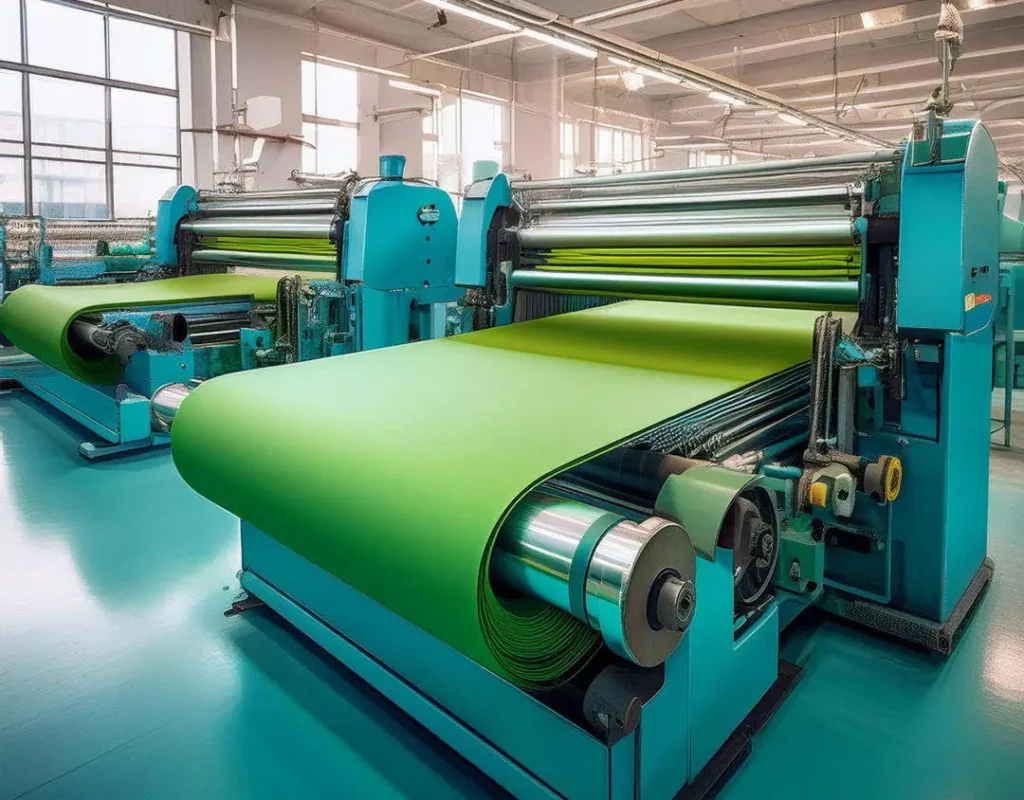

They are ideal for detecting fine surface defects and variations across large or moving materials. In one recent use case, PEKAT VISION’s Anomaly Detector module was combined with a Datalogic line scan camera to identify unpredictable surface defects in real time.
This combination of high-resolution image acquisition and deep learning–based inspection makes line scan cameras a powerful solution for continuous manufacturing environments where precision and speed are critical.
KEY HIGHLIGHTS
- 2K to 8K resolution in grayscale for exceptional detail
- High-speed line rate enables inspection of fast-moving or continuous materials
- Compact design supports installation in tight spaces
- GigE Vision interface ensures easy integration and high data throughput
- Ideal for applications like print inspection, surface analysis, and cylindrical object inspection
TECHNICAL SPECIFICATIONS
| COMMUNICATION | |
| PoE | No |
| Camera Interface | GigE |
| ELECTRICAL DATA | |
| Supply voltage | 12 … 24 Vdc |
| MECHANICAL DATA | |
| Dimensions | 36x56x62 mm |
| Lens mount | C/F/M42-Mount or F/M42-Mount |
| ENVIRONMENTAL DATA | |
| Operating Temperature | 0 … 50 °C |
| Mechanical Protection | IP30 |
ALL AVAILABLE MODELS
| RESOLUTION | MONO/COLOR | LENS MOUNT | MAX LINE RATE | MODEL |
|---|---|---|---|---|
| 2048 pixels | Monochrome | C/F/M42-Mount | 51 kHz | CAM-M565-GE-2048 (959931002) |
| 4096 pixels | Monochrome | F/M42-Mount | 26 kHz | CAM-M570-GE-4096 (959931003) |
| 6144 pixels | Monochrome | F/M42-Mount | 17 kHz | CAM-M575-GE-6144 (959933020) |
| 8192 pixels | Monochrome | F/M42-Mount | 12 kHz | CAM-M580-GE-8192 (959933021) |
MECHANICAL DRAWING
ACCESSORIES
| LENSES | |
|---|---|
| Description | Part number |
| Lens, Navitar, F-Mount, Focal Length 28mm, M72 x 0.75 Filter Thread | 927-1-19711 |
| Lens, Navitar, F-Mount, Focal Length 35mm, M52 x 0.75 Filter Thread | 927-1-19712 |
| Lens, Navitar, F-Mount, Focal Length 50mm, M52 x 0.75 Filter Thread | 927-1-19713 |
| ADAPTERS | |
|---|---|
| Description | Part number |
| M42 x 0.75-mount Adapter, M5xx | 95A906481 |
| M42 x 1-mount Adapter, M5xx | 95A906480 |
| C-Mount Adapter, M565 | 95A906301 |
| F-mount Adapter, M5xx | F95A906302 |
