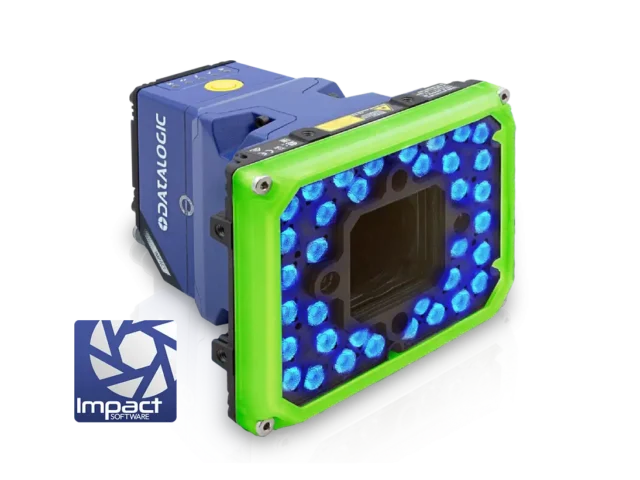

P2/3x Smart Cameras

Smart Camera Applications in Industry

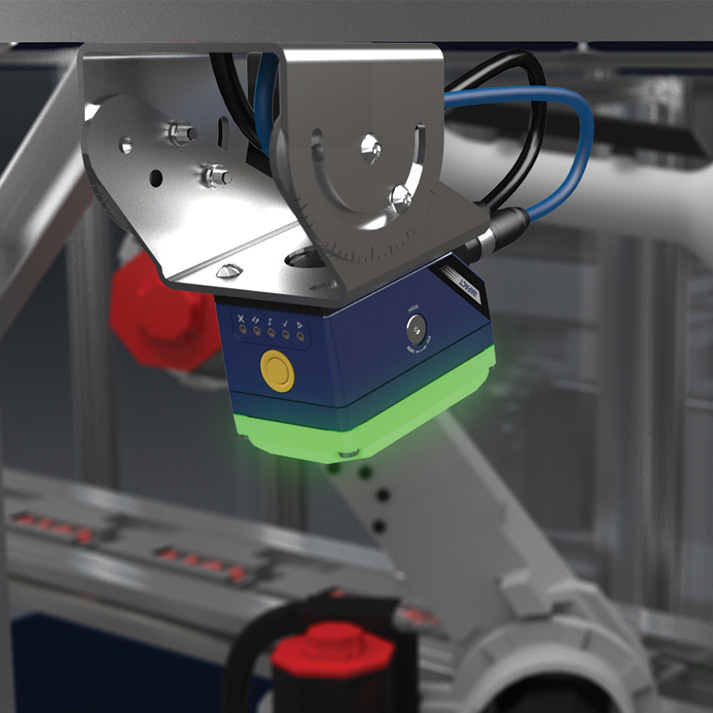

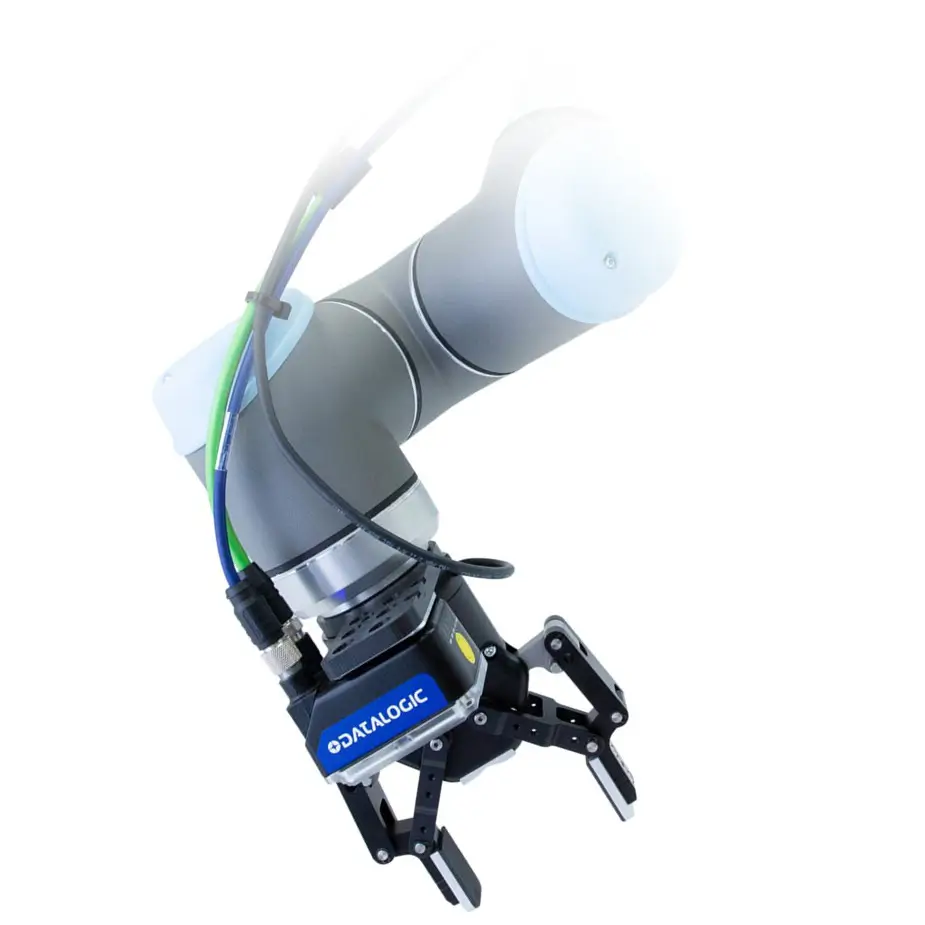

ROBOT GUIDANCE

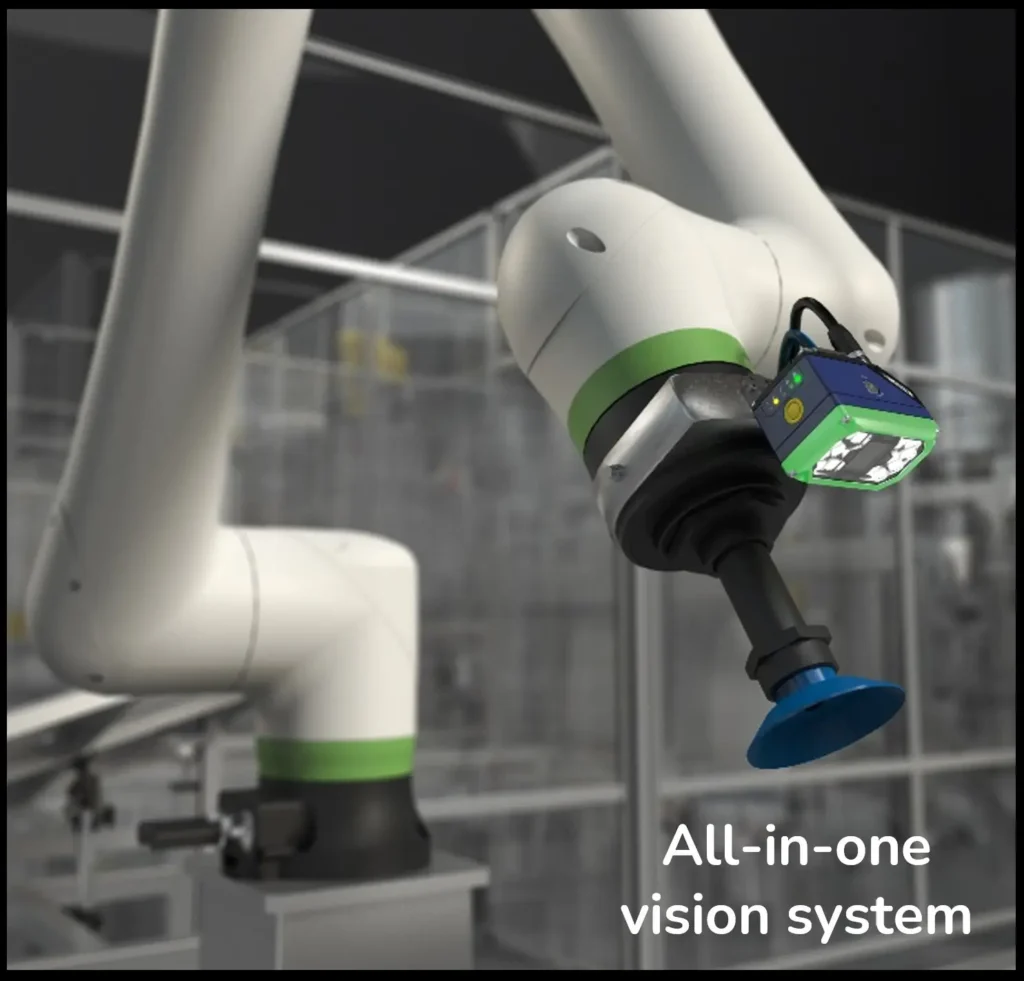

All-in-one vision system in a compact housing, easy to integrate on robot arms.

Advanced Pattern Matching (Pattern Find) ensures robust object localization, even in demanding environments.

Integrated lighting, 5 MP sensor resolution, and C-mount lens options make it ideal for robot guidance applications requiring a large field of view or extended working distance.

PRECISE QUALITY INSPECTION

C-mount models support telecentric lenses for minimal image distortion. Combined with 2MP or 5MP sensor resolution, they enable high-precision inspection of very small parts.

A wide range of edge detection tools and robust pattern matching algorithms ensure accurate location and measurement of components, regardless of their shape.

ASSEMBLY VERIFICATION

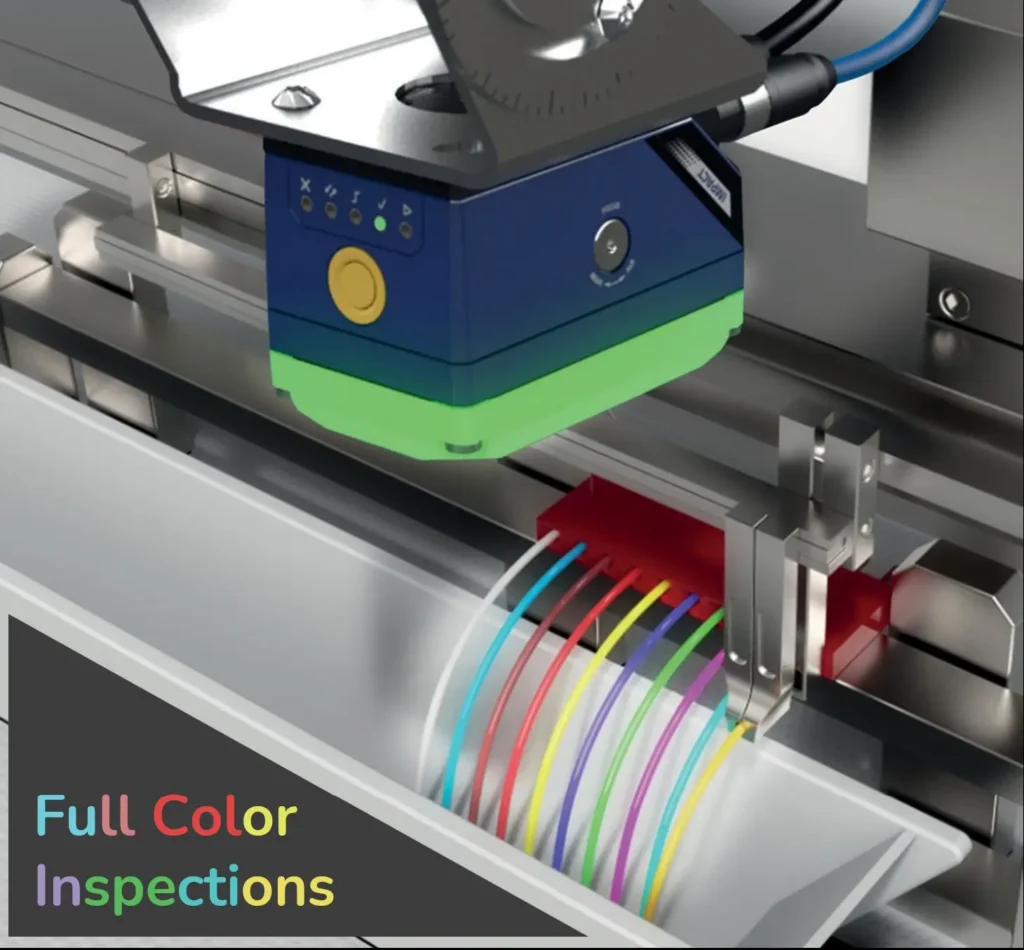

P2x and P3x smart cameras combine high-resolution sensors with full-color inspection to ensure reliable quality control across a wide range of assembly tasks.

From wire color verification to connector alignment and component presence checks, these all-in-one solutions deliver the speed, precision, and repeatability required in modern production environments.

PACKAGING INSPECTION

P2x and P3x smart cameras deliver high-precision quality control for packaging applications — from label verification and seal inspection to checking product integrity. Their compact form and advanced vision tools ensure efficiency and reliability, even on high-speed production lines.

Thanks to the very powerful lighting system there is no need for additional external illuminators.

P-Series Smart Camera Models

Same Flexibility, Different Performance: Both P2x and P3x Smart Cameras share the same advanced optical design that defines the P-Series — offering exceptional image quality and flexible configuration. Whether you choose a compact micro-video lens or opt for the highest optical precision with a C-Mount setup, you can count on full compatibility with a wide range of illuminators, filters, and protective covers. This ensures you get optimal image brightness and clarity for your application, regardless of which model you select

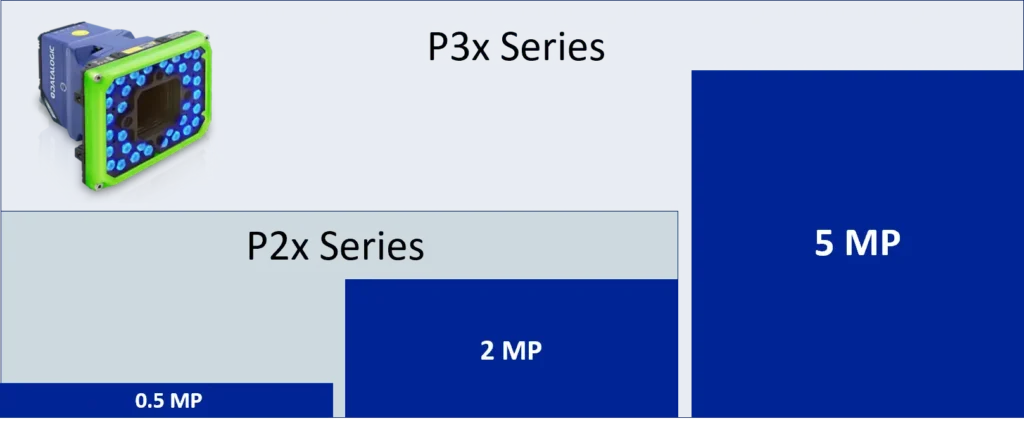

While both models offer the same mechanical design and accessory compatibility, they differ in performance: the P3x delivers higher resolution and faster processing speed, making it ideal for more demanding machine vision tasks.

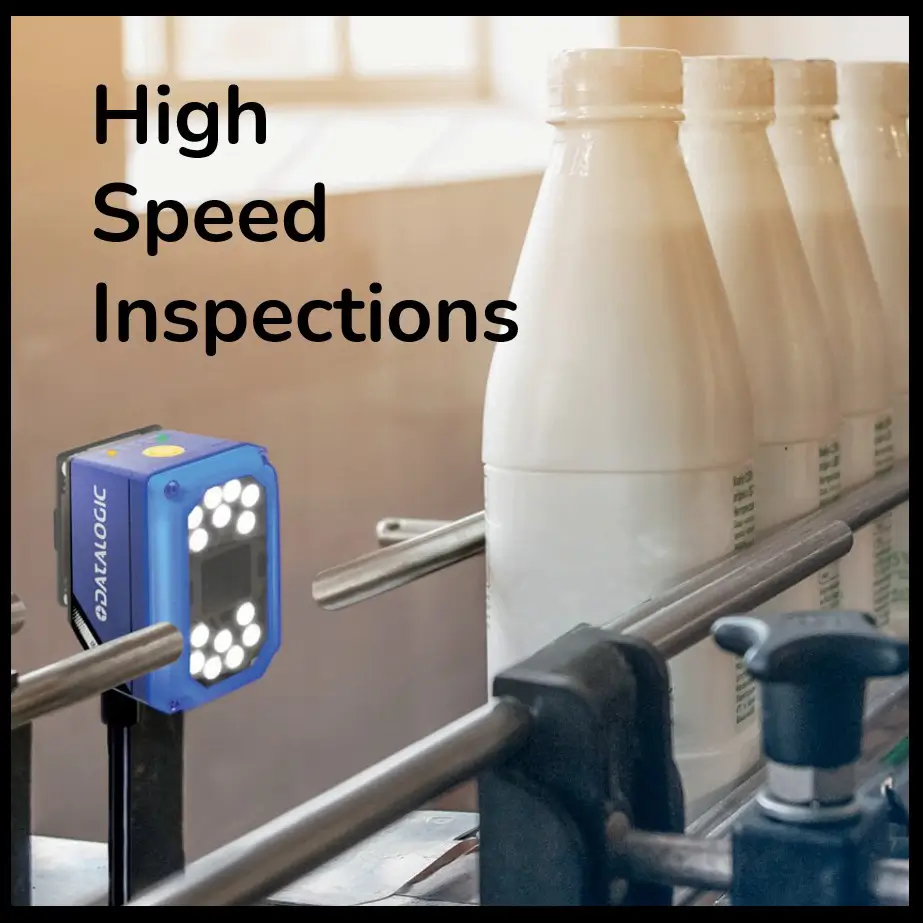

HIGH-SPEED PERFORMANCE

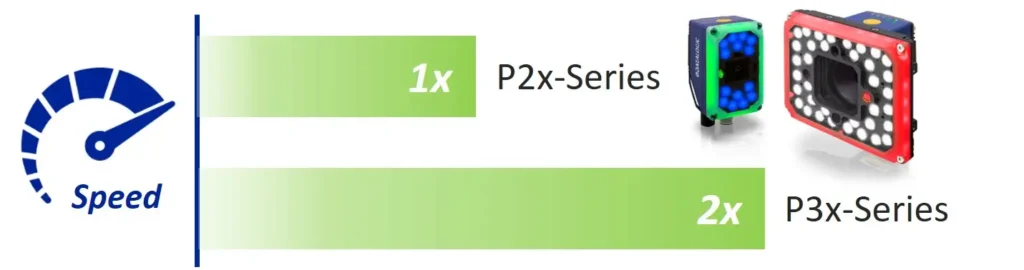

The P3x Series features the latest chipset to deliver maximum inspection speed.

5 MP RESOLUTION FOR GREATER DETAIL

The P3x’s 5 MP resolution provides sharper, more detailed images, enabling reliable detection of small features and defects.

P-Series Smart Camera Features

360° VISUAL FEEDBACK FOR INSTANT STATUS AWARENESS

P-Series Smart Cameras feature a configurable 360° multi-color LED ring on both illuminator types. Using IMPACT software, you can set custom colors to indicate inspection results — providing clear, intuitive feedback to nearby operators, even without an HMI. The bright ring remains visible from all angles and distances, making it easy to monitor system status at a glance.

BUILT-IN ACCELEROMETER FOR RELIABLE ALIGNMENT

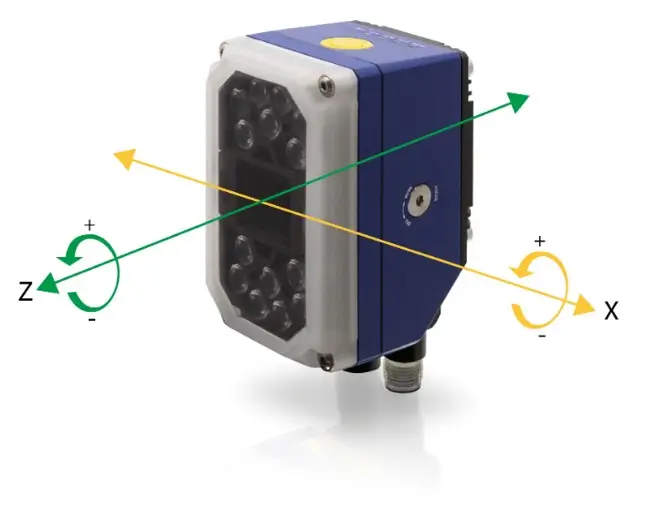

The P-Series is the world’s first smart camera with an embedded accelerometer that continuously monitors its spatial orientation. Once installed, you can store the correct position in memory — the camera will automatically detect any shift or misalignment and issue an immediate alert. This feature simplifies maintenance and ensures inspection results remain reliable, even in the presence of vibration or accidental movement.

WEB-BASED MONITORING WITH SMART CAMERA MONITOR (SCM)

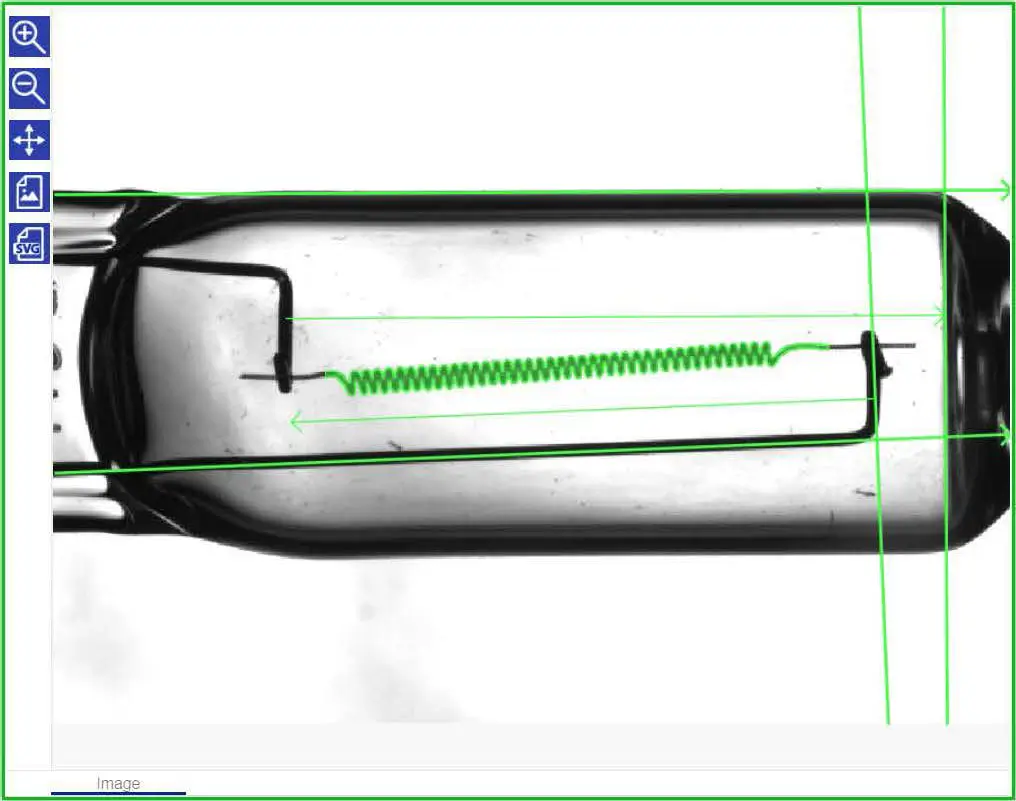

In addition to CPM and SDK, P-Series Smart Cameras now include the Smart Camera Monitor (SCM) — a built-in, web-based HMI. Simply connect via any browser-enabled device (industrial panel, tablet, or smartphone) to view inspection results, statistics, image diagnostics, and more.
SCM supports multiple languages, user access levels, and password protection — no software installation required.

Integrated IMPACT Tools

The Impact software suite addresses many types of quality inspection applications in diverse industries and includes over 100 vision tools for inspection, measurement, and identification, additionally offering:

SOFTWARE DEVELOPMENT KIT (SDK)

Enabling seamless integration with 3^rd party track & trace software solutions.

EASY INTEGRATION WITH PLC

Integrated PROFINET and Ethernet/IP fieldbuses for easy integration.

For more demanding applications, Impact also runs on the more powerful MX-E Series Vision Processors — delivering top-tier performance for complex inspection systems.

Simple Use Case — P2x Smart Camera

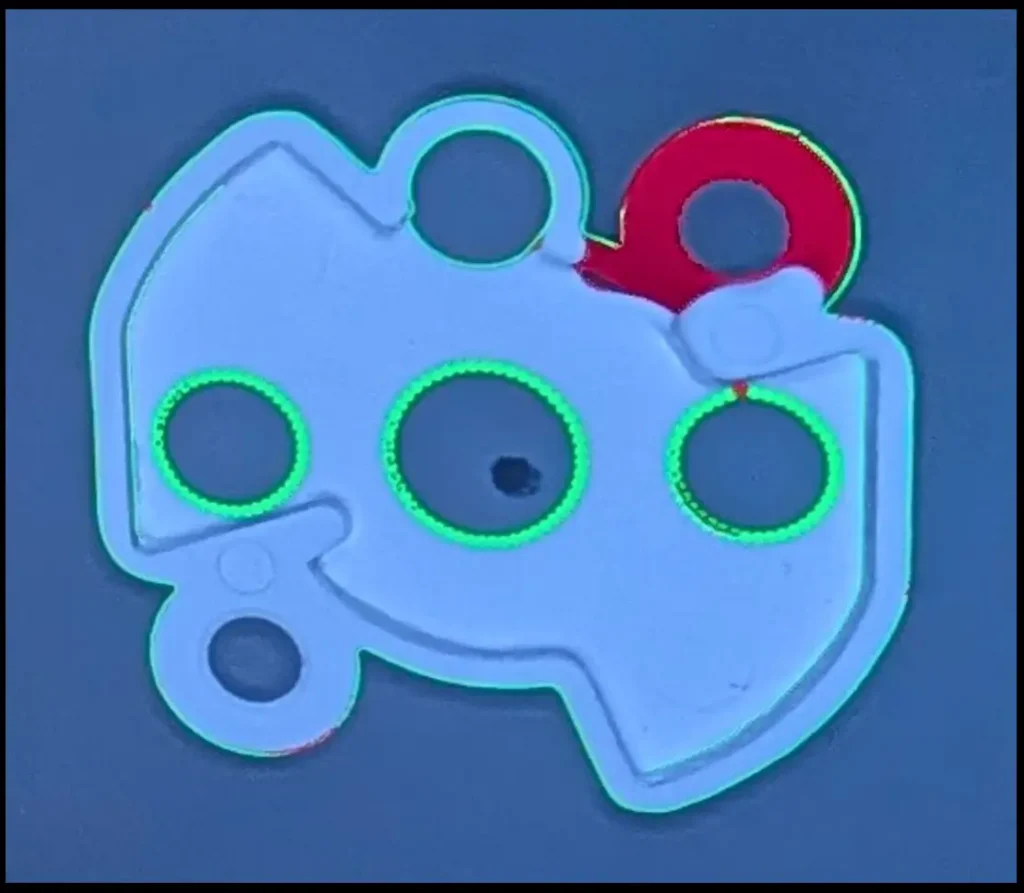

INSPECTION OF SMALL PLASTIC PARTS — IMPACT TOOLS

Blue Eye Tool – for part localization in the image
Circle Fit – to measure the diameter and detect deviations in holes
Grayscale Template to evaluate shape and identify defects

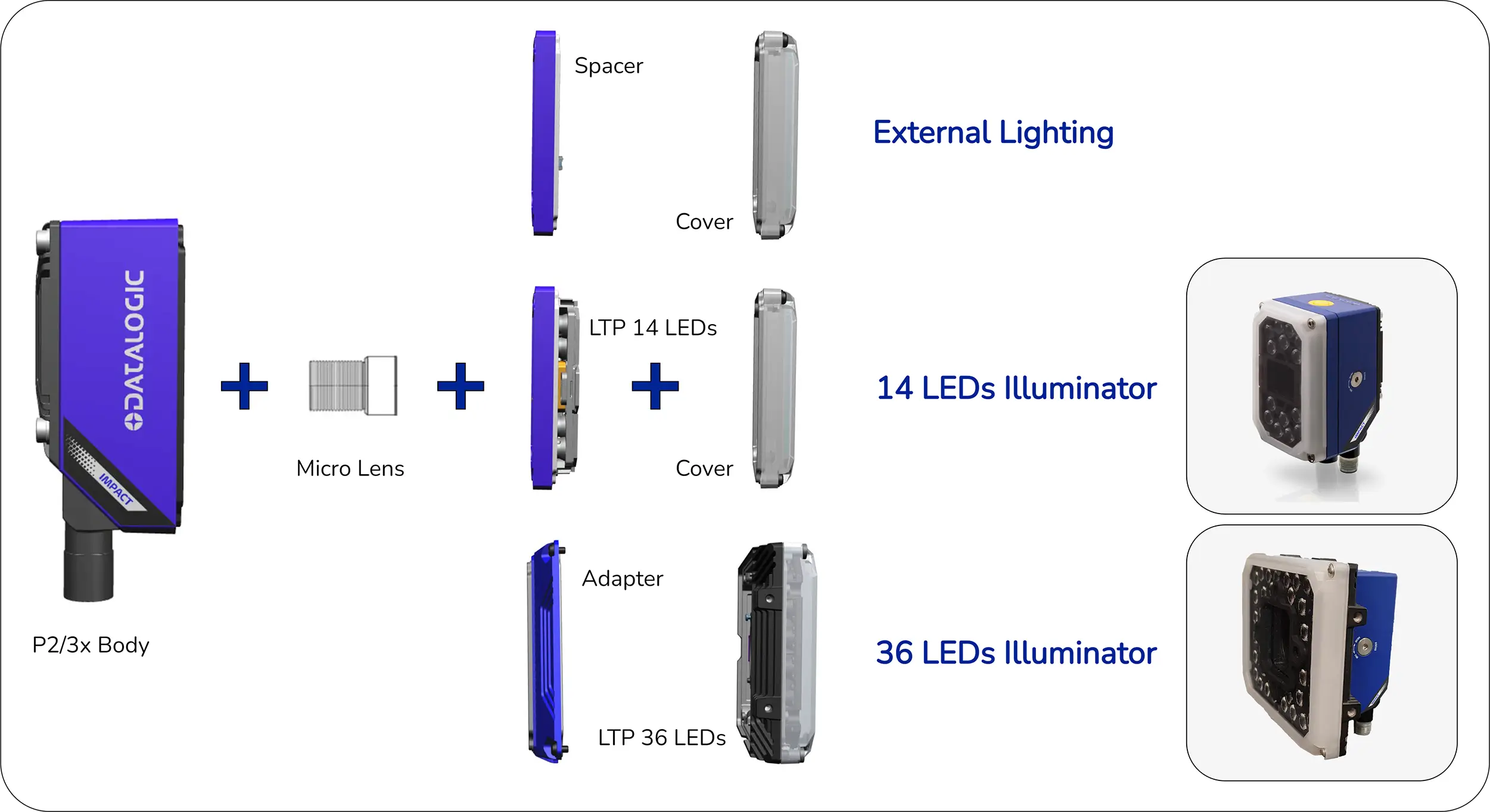

P2x/P3x Camera System with MICRO-LENS

P2x Smart Cameras for Micro-lens

P3x Smart Cameras for Micro-lens

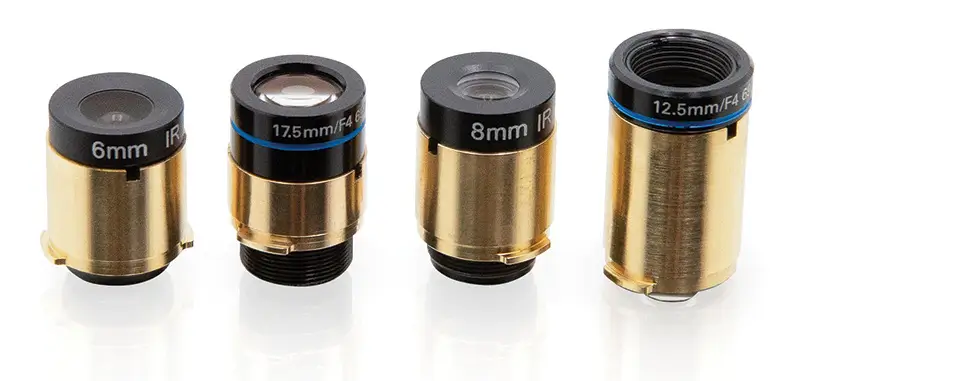

Micro-Video Lenses

Field of View Example: qHD/2 MP (H x V in mm)

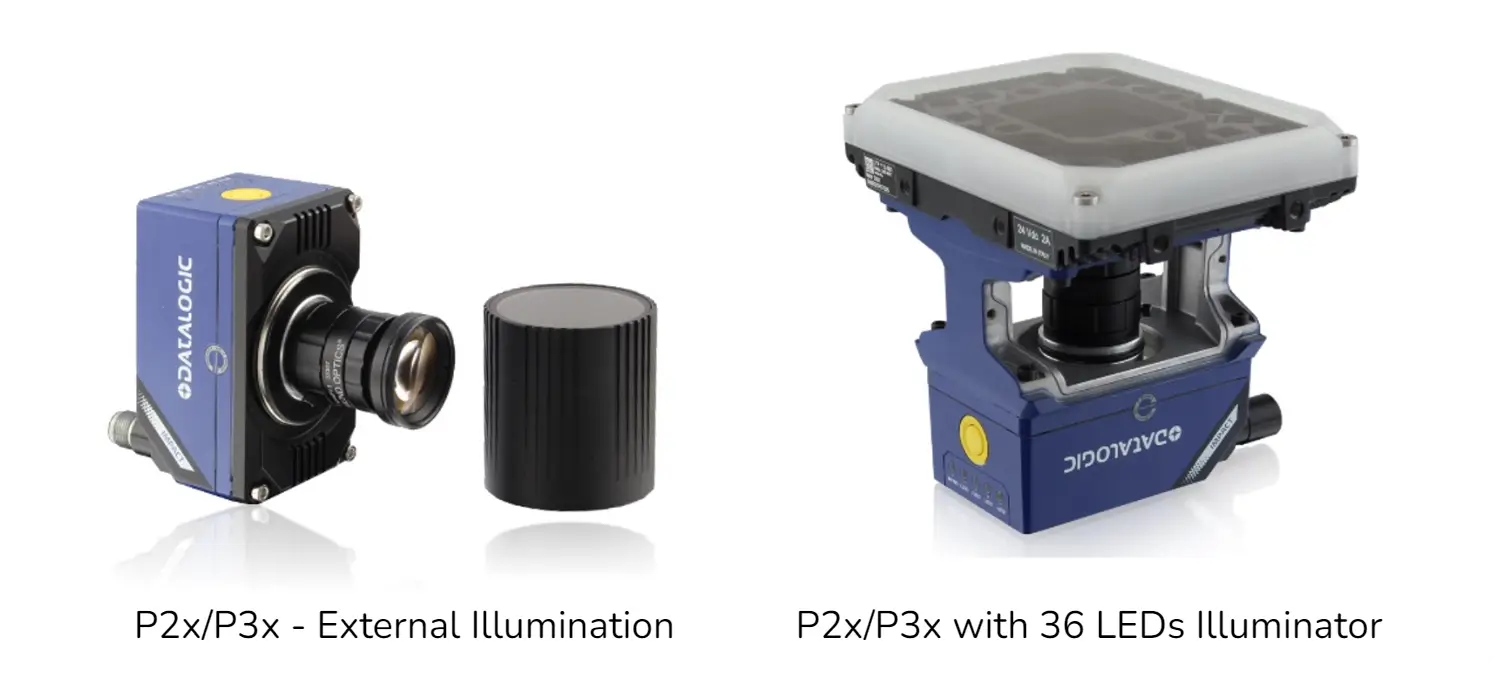

P2x/P3x Camera System with C-MOUNT LENS

P2x Smart Cameras for C-Mount lens

P3x Smart Cameras for C-Mount lens

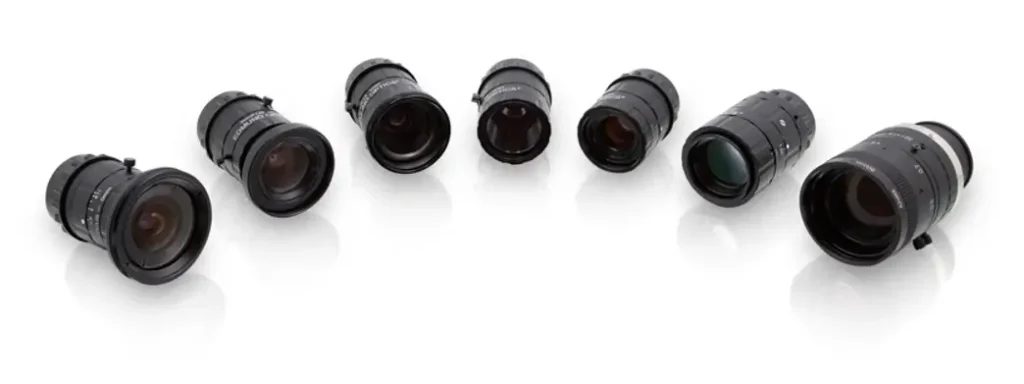

C-Mount Lenses

Field of View Example: qHD/2 MP (H x V in mm)

Accessories

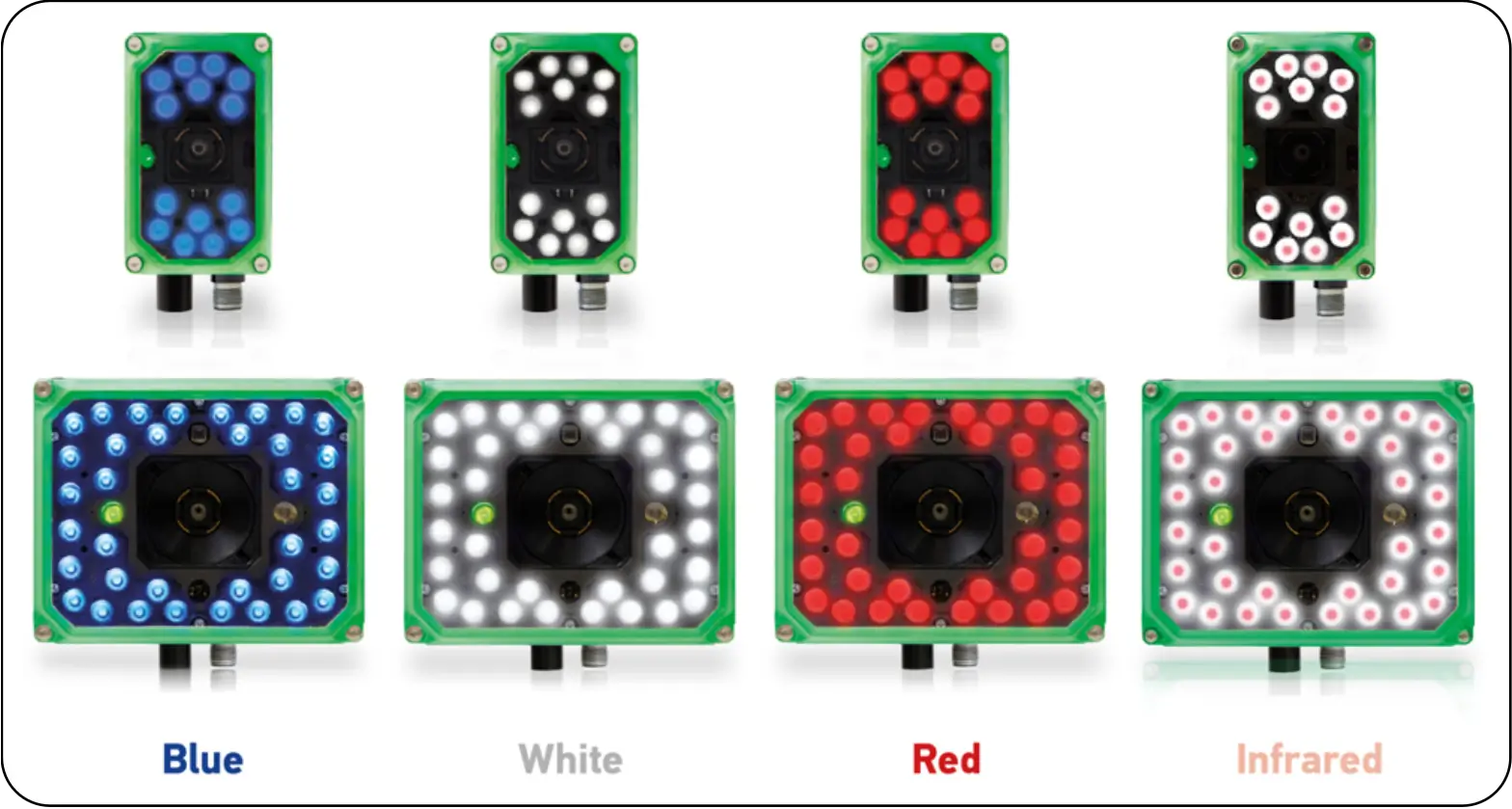

ILLUMINATORS

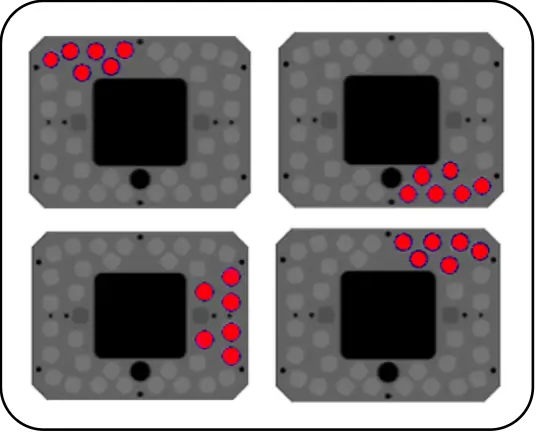

Software configurable lighting segments to optimize image brightness on the Field-of-View.

Multiple options of Total Internal Reflection (TIR) LED lenses to match smart camera lens aperture.

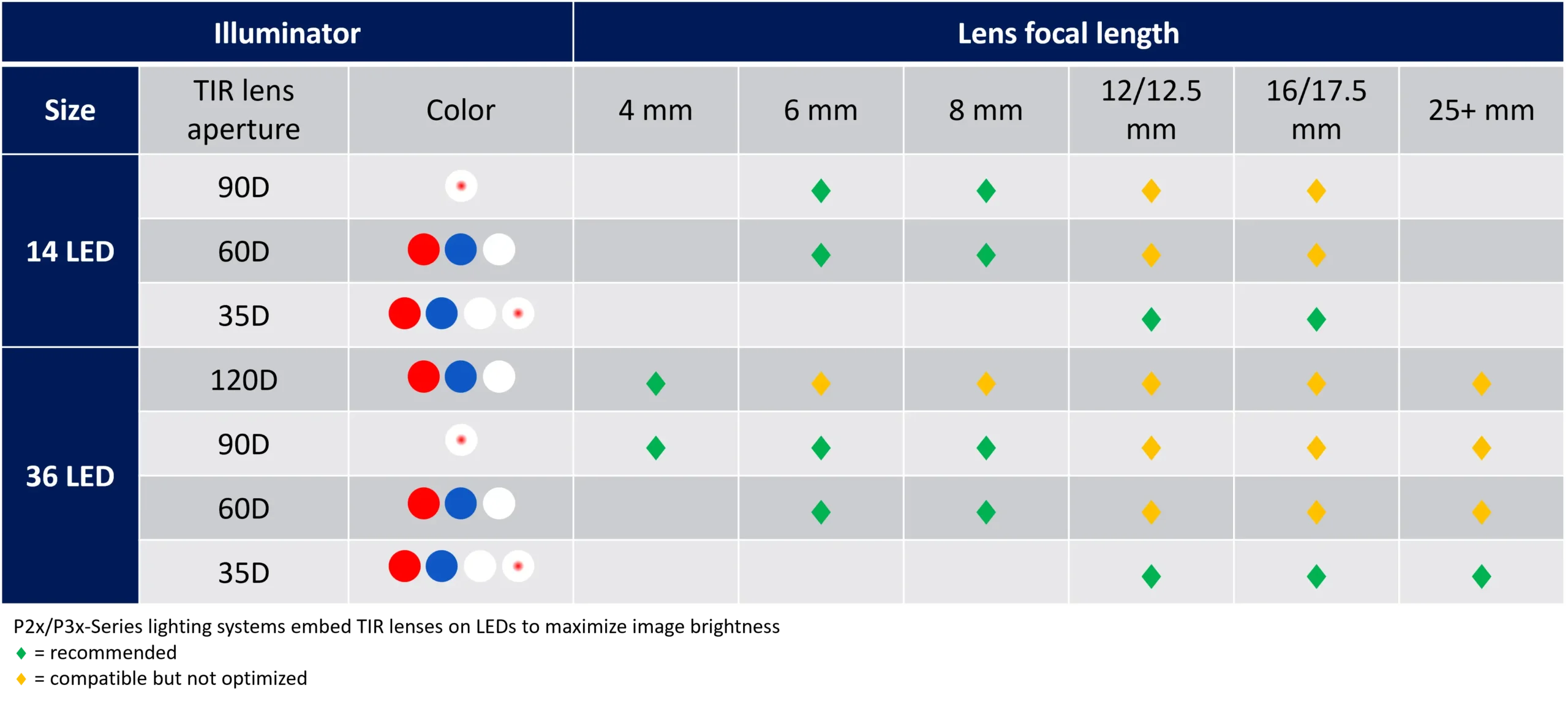

ILLUMINATORS COMPATIBILITY

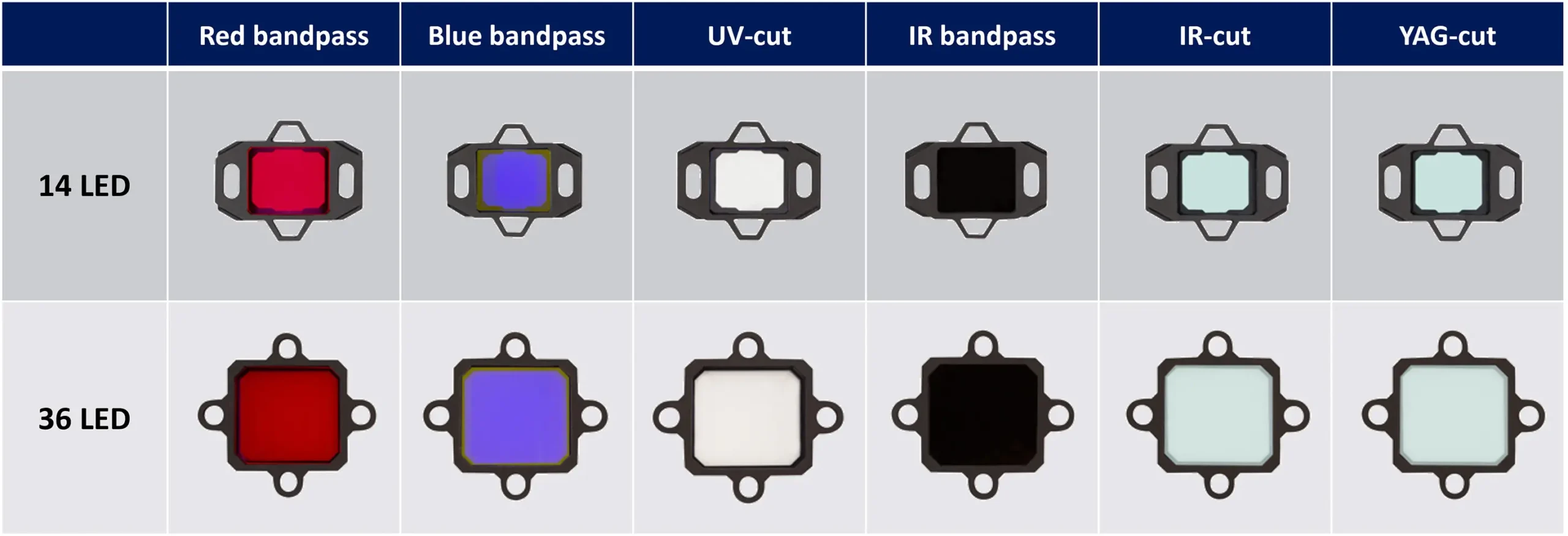

FILTERS

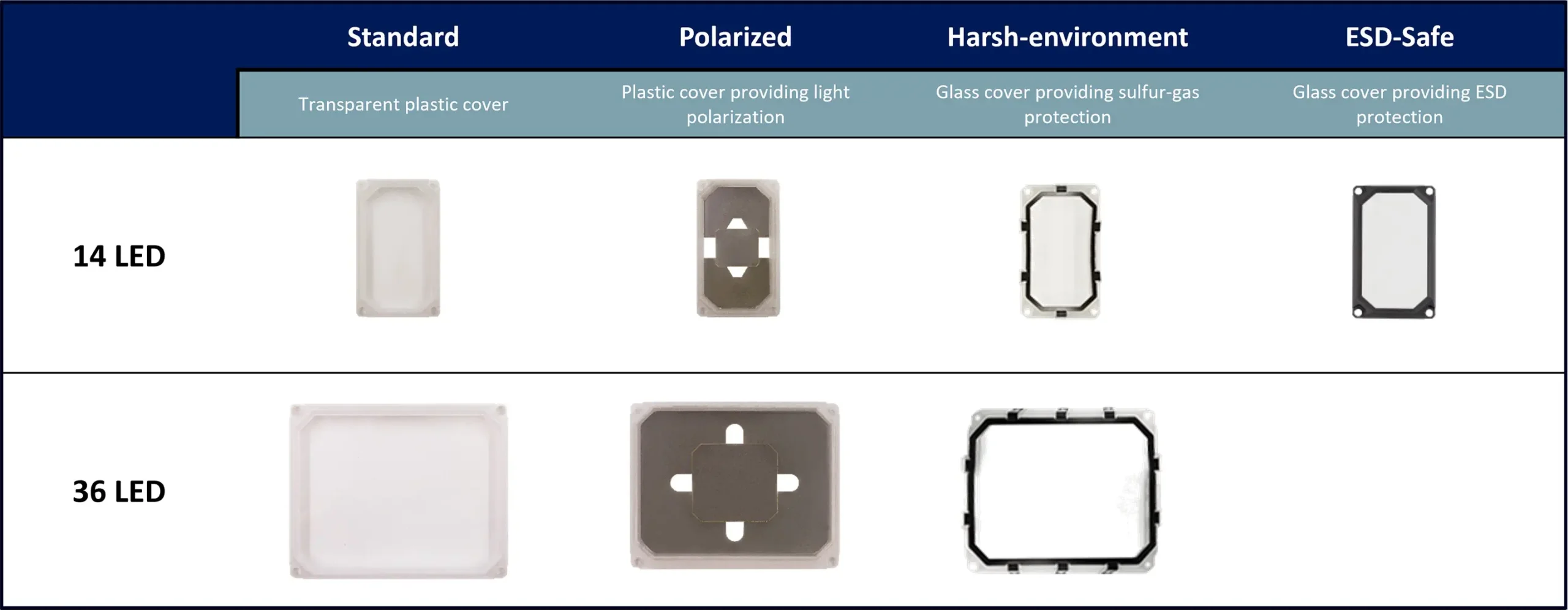

COVERS

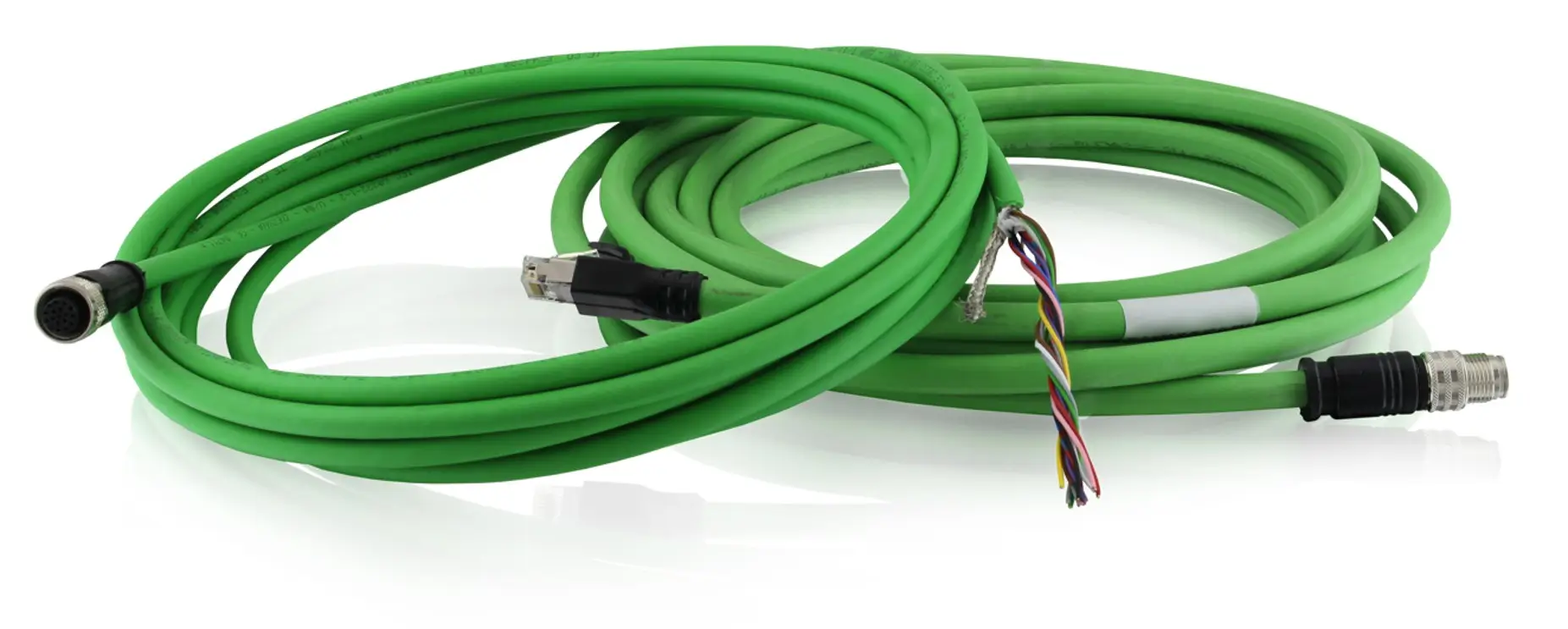

CABLES

BRACKETS

PART NUMBER	DESCRIPTION
93ACC0282*	BK-32-000 STD FIX BRACKET M320/P2/P3

PART NUMBER	DESCRIPTION
93ACC0283	BK-32-010 SIDE FIX BRACKET M320/P2/P3
