MX-E Series Machine Vision Processors

The MX-E Series of Industrial Vision Processors provides the highest performance in image processing with unmatched ﬂexibility through GigE multi-camera connectivity support.

The MX-E Series allows users to choose the level of system performance and complexity based on their application needs. Three diﬀerent MX-E models are available, each featuring the latest processors and high speed PoE (Power over Ethernet) camera ports.

See All Products

Precise
Measurement

1D/2D
Code Reading

Defect
Detection

Text
Reading

Camera Based
Robot Guidance

Completeness
Check

Product
Sorting

Rugged, Industrial, High-powered Vision Processors

The MX-E vision processors are equipped with NPN or PNP digital I/O and power up to 8 Gigabit PoE cameras, allowing data collection and analysis from multiple points, reducing the overall integration costs.

Their state-of-the-art chipsets guarantee extraordinary computing power and maximize multi-camera inspection speed. The highest quality hardware components in a rugged and compact processor chassis guarantee robustness and long- life service even in the harshest industrial environments.

Maximum Computing Power

State-of-the-art Intel® chipset for maximum computing power

Extraordinary Flexibility

16+16 configurable digital inputs and outputs for extraordinary flexibility

High Return on Investment

Up to 8 camera connected simultaneously to the same vision processor

IMPACT
Software

Supported industrial communication protocols:

Download Datasheet

MX-E Vision Processor Series

Three different models and multiple configuration options allow the user to select the correct level of performance based on their specific application needs.

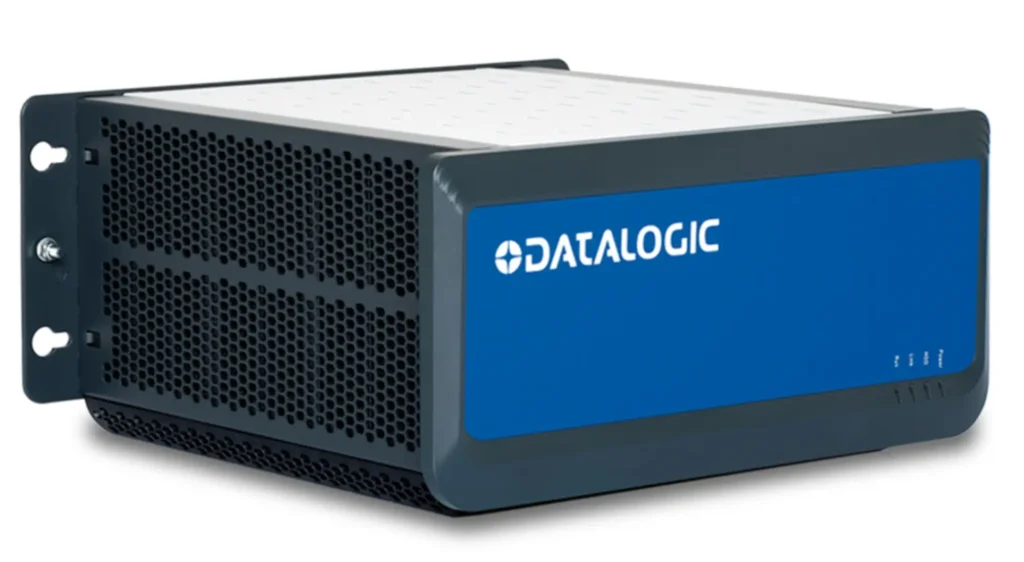

MX-E25

The MX-E25 is an entry-level, aﬀordable processor capable of connecting to 2 cameras. The MX-E25 oﬀers a cost eﬀective means to migrate from smart camera applications to an industrial vision system.

MX-E45

The MX-E-45 is a rugged and compact industrial vision processor that features multi-core processors and up to 4 cameras. The MX-E45’s long-life embedded components provide a robust and reliable vision system for critical inspection applications.

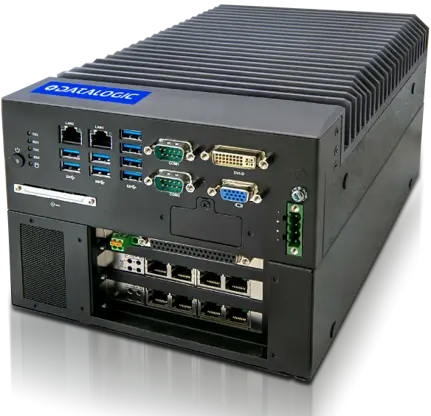

The MX-E90

The MX-E90 extends the power and performance of the MX-E Series to applications that demand faster and higher resolution cameras. With its quad-core processor it can dedicate a full processing core to up to 4 cameras. With the capability to connect up to 8 cameras, it allows users to extend their capability and yet reduce the total cost of ownership due to less hardware.

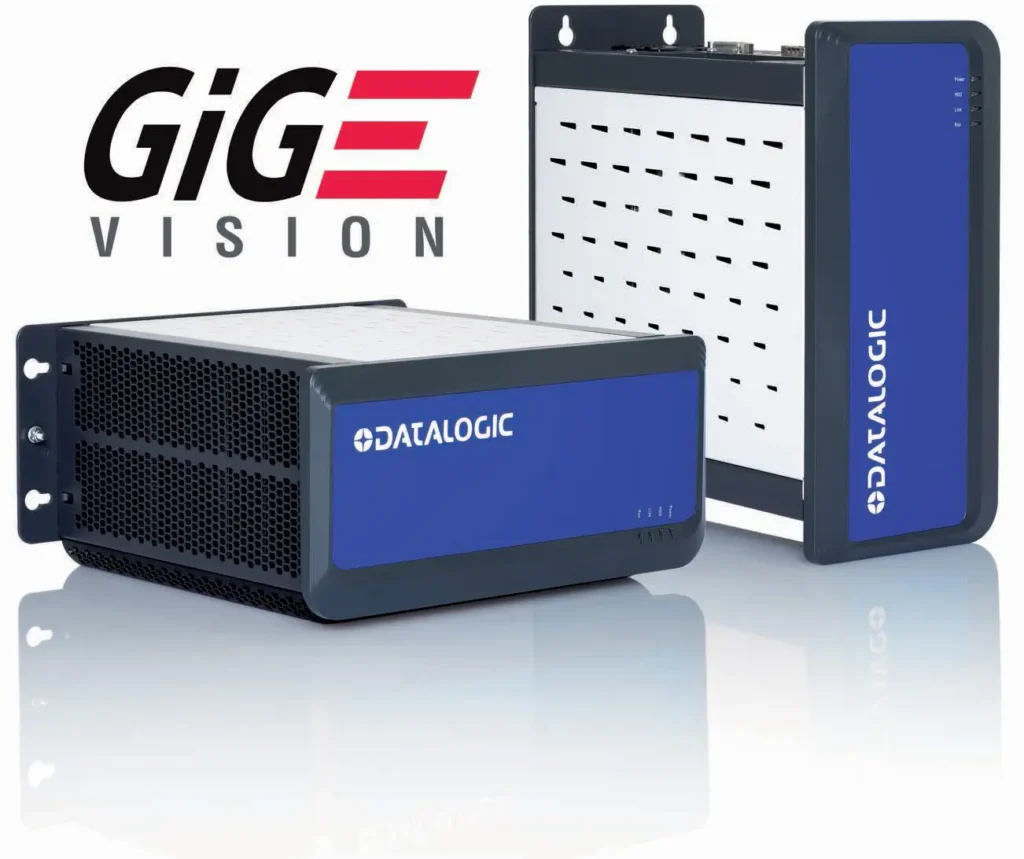

Datalogic MX-E Series Machine Vision Processors lineup

Powered by IMPACT

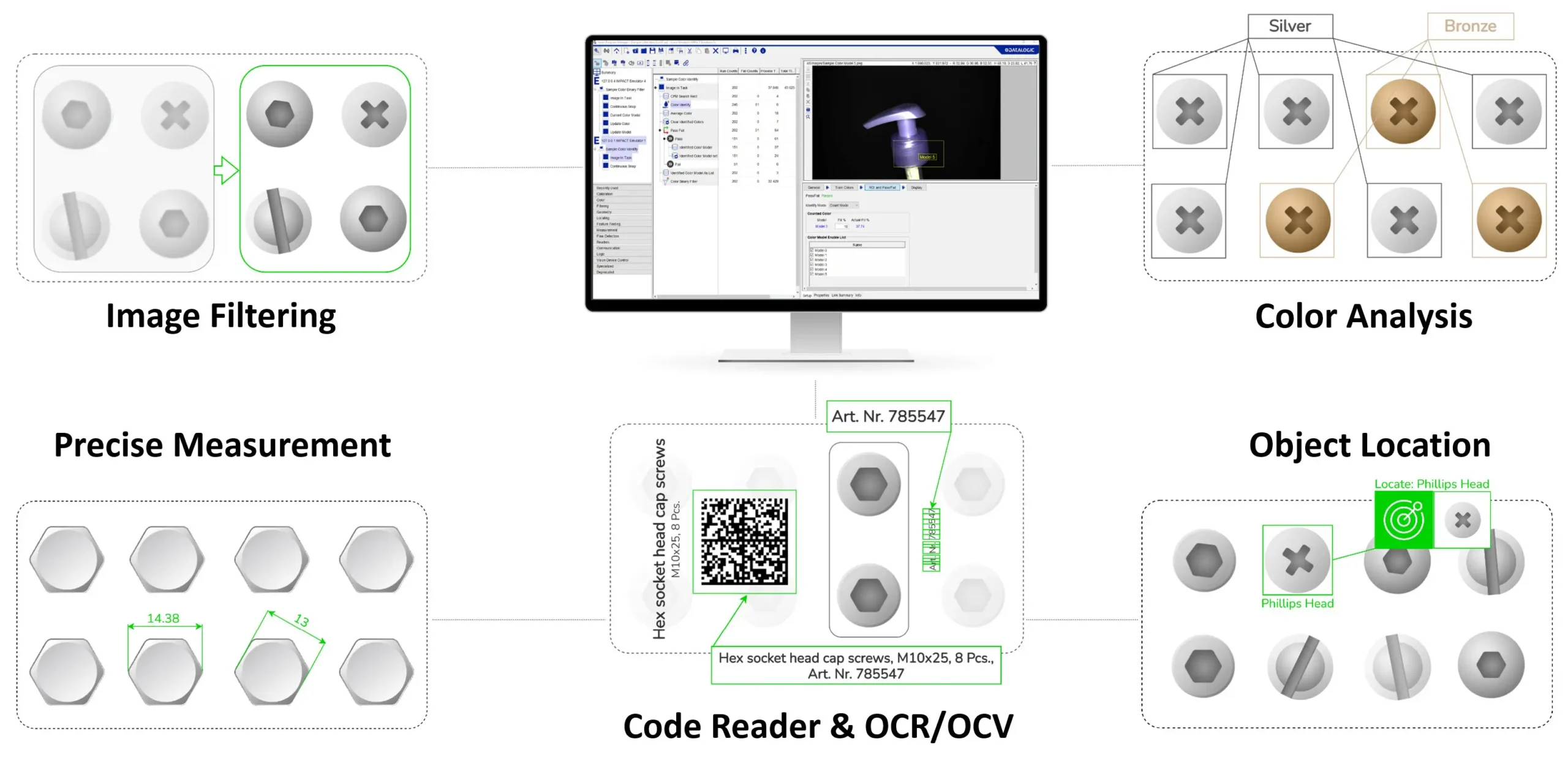

The IMPACT software suite includes over 100 inspection tools for locating, measuring, counting, reading, and verifying, enabling users to build flexible, high-performance vision applications across a wide range of industries.

The MX-E Series is the ideal solution for deploying industrial vision systems with multiple independent inspection points.

IMPACT SOFTWARE

Technical Details

	MX-E25	MX-E45	MX-E90
CPU	Intel Celeron 1.7 GHz – dual core	Intel Celeron 2.4 GHz – dual core	Intel Core i7-3.8 GHz Quad Core + HT
System Memory	8 GB DDR4 RAM		32 GB DDR4 RAM
Storage	128 GB SATA SSD (MLC)
Graphics	Intel® HD Graphics 510 (1920×1200 resolution) – DisplayPort, DVI		Intel® HD Graphics 630 (1920 x 1200 resolution) – VGA, DVI
Camera Imager Limit	5Mpix or lower
Network interface	2x LAN ports – 10/100/1000 Mbps Base-T
Serial Communications	1x RS-232 serial port		2x RS-232 serial port
Keyboard/Mouse	4x USB 3.0 ports		8x USB 3.0 ports
Comm Connectivity	Supports EtherNet/IP, Profinet, Modbus TCP and OPC
I/O	16 in -16 out, PNP card or NPN card, 200μs response time		16 in -16 out – single I/O card configurable PNP/NPN, 100μs response time
Operating System	Windows 10 IoT Enterprise
Supply Voltage	24 VDC +/- 25%
Nominal Current Draw	5.5 A @ 24 VDC
Dimensions	270 (H) x 130 (W) x 255 (D) mm		145 (H) x 192 (W) x 230 (D)
Weight	2.05 Kg		4.45 Kg
Housing	Galvanized plate – plastic		Metal
Operating Temperature	0 to 50 °C / 32 to 122 °F
Operating Humidity	5 to 95% (non-condensing)
Mechanical Protection	IP20
Fanless	Yes	No
Certification (Safety Compliance)	CE/FCC, c-UL-us, KCC

MX-E Model Configurations

MX-E25

Description	Part Number
MX-E25-2-P-2, Vision Processor, 2 ports, PNP, WIN10	959912107
MX-E25-2-N-2, Vision Processor, 2 ports, NPN, WIN10	959912108

MX-E45

Description	Part Number
MX-E45-2-N-2, Vision Processor, 2 ports, NPN, WIN10	959914116
MX-E45-4-P-2, Vision Processor, 4 ports, PNP, WIN10	959914117
MX-E45-4-N-2, Vision Processor, 4 ports, NPN, WIN10	959914118

MX-E90

Description	Part Number
MX-E90-2-B-2, Vision Processor, 2 ports, PNP/NPN, WIN10	959918118
MX-E90-4-B-2, Vision Processor, 4 ports, PNP/NPN, WIN10	959918112
MX-E90-8-B-2, Vision Processor, 8 ports, PNP/NPN, WIN10	959918113

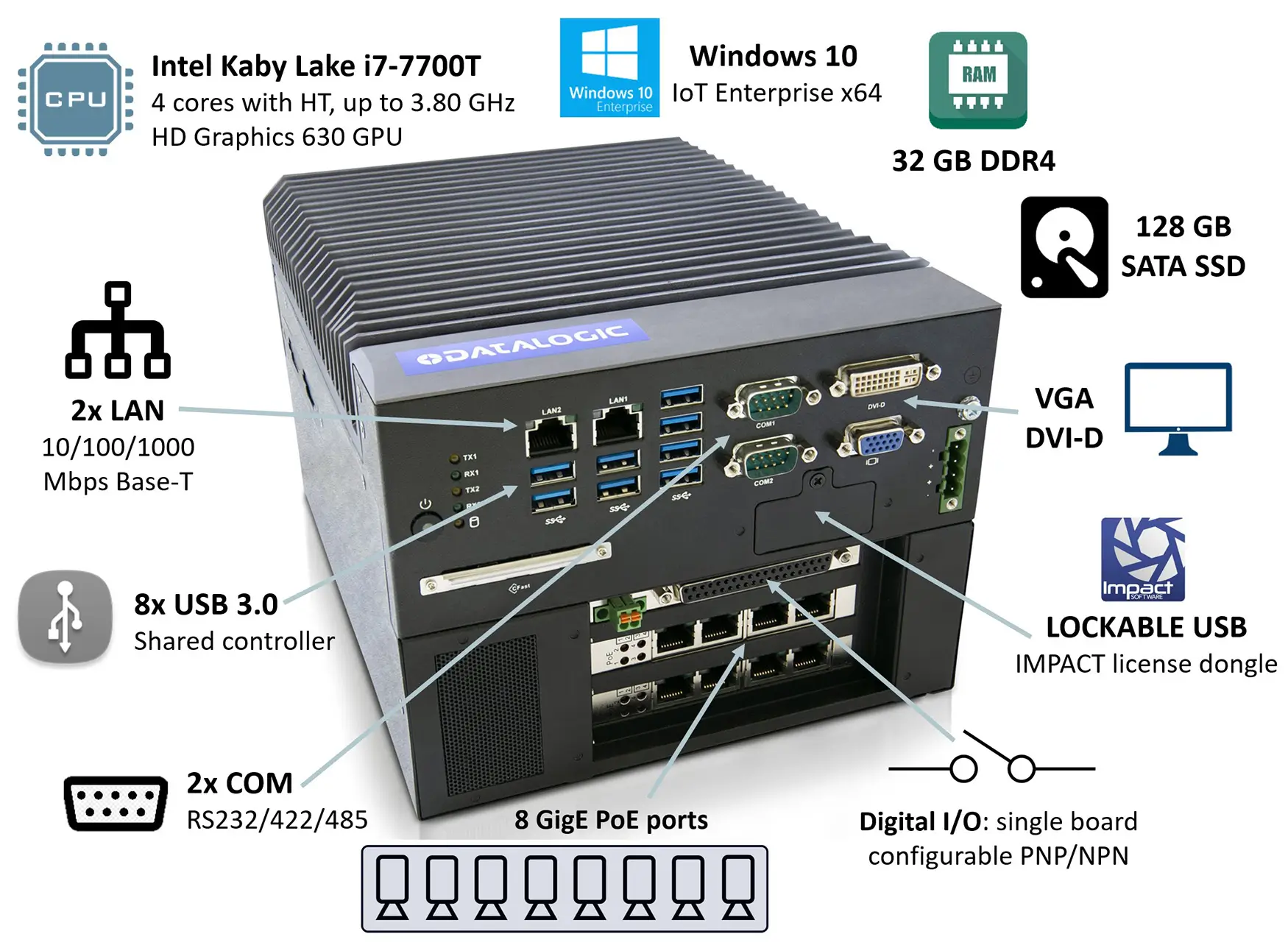

MX-E90-8-B-2 – FEATURES

Download Datasheet

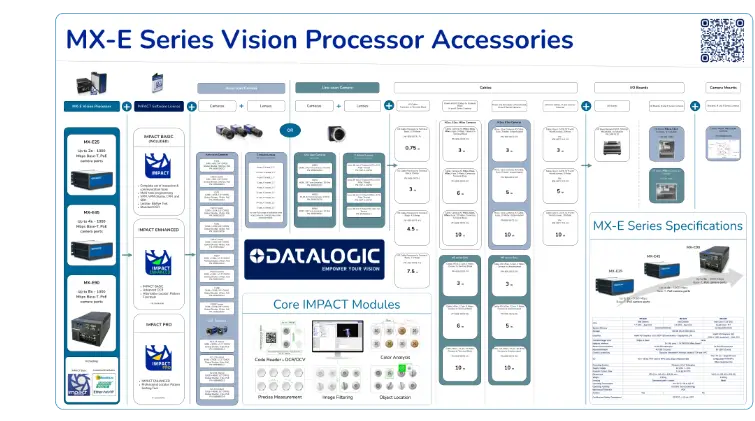

Accessories

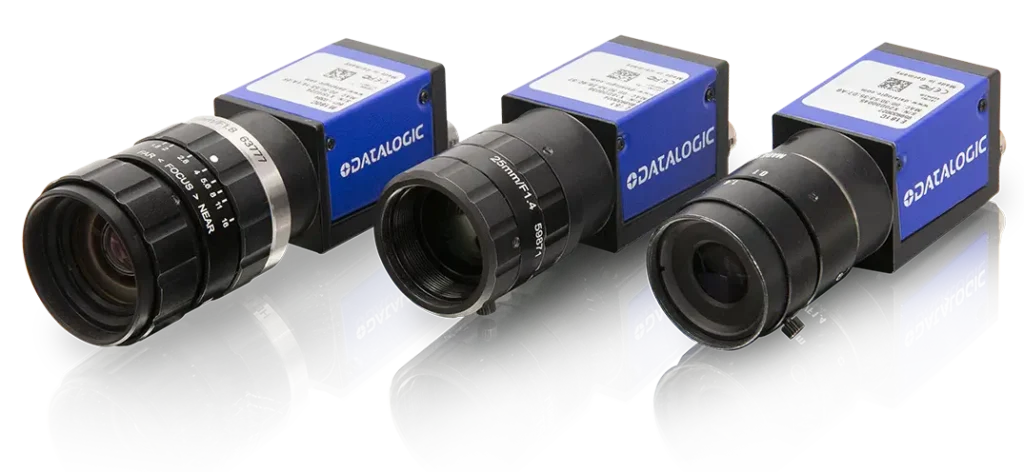

AREA SCAN CAMERAS

Description	Part Number
Camera, E101, Gig-E, 659 x 480, 300 FPS, Grayscale, 1/4” CMOS	959933022
Camera, E101C, Gig-E, 659 x 480, 300 FPS, Color, 1/4” CMOS	959933023
Camera, E151, Gig-E, 1280 x 1024, 75 FPS, Grayscale, 1/2” CMOS	959933024
Camera, E151C, Gig-E, 1280 x 1024, 75 FPS, Color, 1/2” CMOS	959933025
Camera, E181, Gig-E, 1920 x 1200, 48 FPS, Grayscale, 2/3” CMOS	959933026
Camera, E181C, Gig-E, 1920 x 1200, 48 FPS, Color, 2/3” CMOS	959933027
Camera, M197, Gig-E, 2592 x 1944, 14 FPS, Grayscale, 1/2.5” CMOS	959931010
Camera, M197C, Gig-E, 2592×1944, 14 FPS, Color, 1/2.5” CMOS	959931011
Camera, E198, Gig-E, 2448 x 2048, 20 FPS, Grayscale, 2/3” CMOS	959933044
Camera, E198C, Gig-E, 2448 x 2048, 20 FPS, Color, 2/3” CMOS	959933045

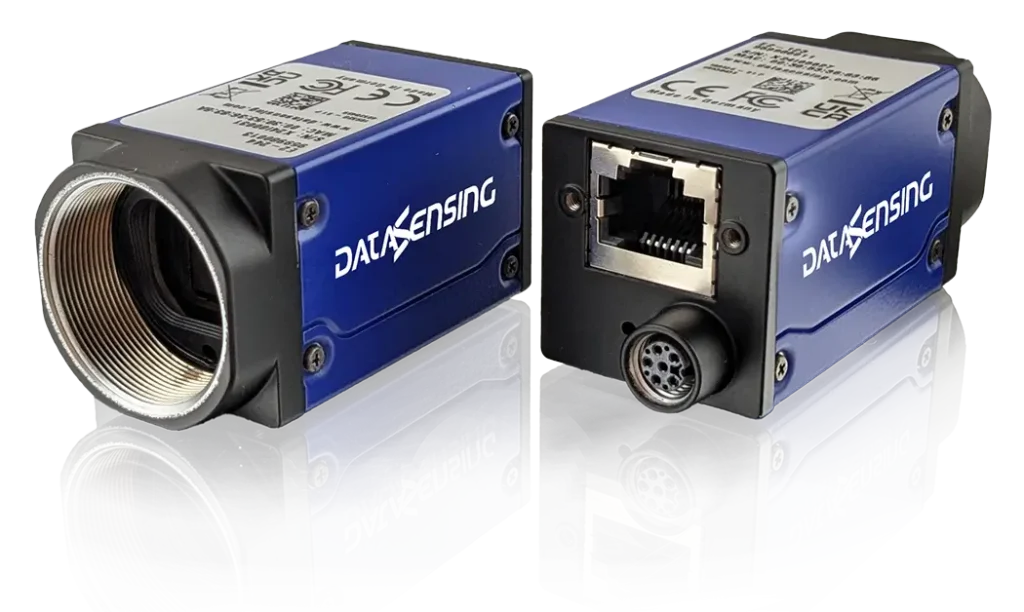

E2-SERIES: HIGH RESOLUTION AREA SCAN CAMERAS

E2-Series: High Resolution Area Scan Cameras
Camera, E2-123, Gig-E, 4096 x 3000, 9 FPS, Grayscale, 1/1.1″ CMOS	959980011
Camera, E2-123C, Gig-E, 4096 x 3000, 9 FPS, Color, 1/1.1″ CMOS	959980012
Camera, E2-244, Gig-E, 5328 x 4608, 4 FPS, Grayscale, 1.2″ CMOS	959980013
Camera, E2-244C, Gig-E, 5328 x 4608, 4 FPS, Color, 1.2″ CMOS	959980014

AREA SCAN CAMERAS

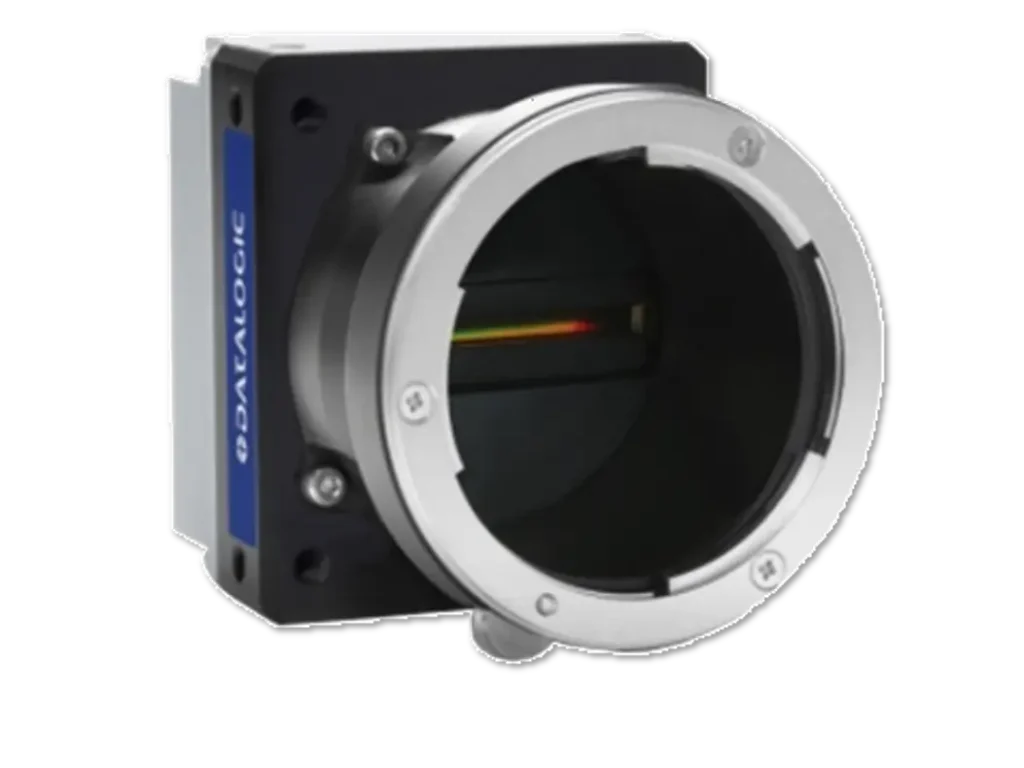

LINE SCAN CAMERAS

GigE Line Scan Cameras
Camera, M565, Gig-E, 2048 Linescan, 51KHz, Grayscale	959931002
Camera, M570, Gig-E, 4096 Linescan, 26KHz, Grayscale	959931003
Camera, M575, Gig-E, 6144 Linescan, 17KHz, Grayscale	959933020
Camera, M580, Gig-E, 8192 Linescan, 12KHz, Grayscale	959933021

LINE SCAN CAMERAS

C-MOUNT LENSES*

C-Mount Lenses for Area Scan Cameras
LEN-KOW-LM50XC	Lens, Kowa, 50mm, C-Mount, 4/3” Format, M37.5 x 0.5 filter thread, LM50CX	95A900091
LEN-KOW-LM12XC	Lens, Kowa, 12mm, C-Mount, 4/3” Format, M55 x 0.75 filter thread, LM12CX	95A900087
LEN-KOW-LM16XC	Lens, Kowa, 16mm, C-Mount, 4/3” Format, M40.5 x 0.5 filter thread, LM16CX	95A900088
LEN-KOW-LM25XC	Lens, Kowa, 25mm, C-Mount, 4/3” Format, M40.5 x 0.5 filter thread, LM25CX	95A900089
LEN-KOW-LM35XC	Lens, Kowa, 35mm, C-Mount, 4/3” Format, M37.5 x 0.5 filter thread, LM35CX	95A900090

*For the full range of available area scan cameras, contact your sales representative.

F-MOUNT LENSES

F-Mount Lenses for Line-Scan Cameras
Description	Part number
Lens, Navitar, F-Mount, Focal Length 28mm, M72 x 0.75 Filter Thread	927-1-19711
Lens, Navitar, F-Mount, Focal Length 35mm, M52 x 0.75 Filter Thread	927-1-19712
Lens, Navitar, F-Mount, Focal Length 50mm, M52 x 0.75 Filter Thread	927-1-19713

I/O BOARD

DESCRIPTION	PART NUBER
I/O Board, MX-E and MX-U Series Processors, Female DB37, DIN Rail Mountable, no isolation	248-0110

CABLES

DESCRIPTION	PART NUMBER
Cable, Gig-E, CAT6, Horizontal Mold, 3 Meter	606-0677-M1-03
Cable, Gig-E, CAT6, Horizontal Mold, 5 Meter	606-0677-M1-05
Cable, Gig-E, CAT6, Horizontal Mold, 10 Meter	606-0677-M1-10
Cable, Gig-E, CAT6, 3 Meter	606-0677-03
Cable, Gig-E, CAT6, 5 Meter	606-0677-05
Cable, Gig-E, CAT6, 10 Meter	606-0677-10
Cable, I/O, MX-E and MX-U Series, Processor to Terminal Block, .75 Meter	606-0675-.75

IMPACT SOFTWARE LICENSES / DONGLES

DESCRIPTION	PART NUMBER
DONGLE, IMPACT	93ACC0185
DONGLE, IMPACT, ENHANCED	93ACC0236
DONGLE, IMPACT, ENHANCED, PST	93ACC0237
LICENSE, PRO, PROCESSOR	95A900041

IMPACT SOFTWARE

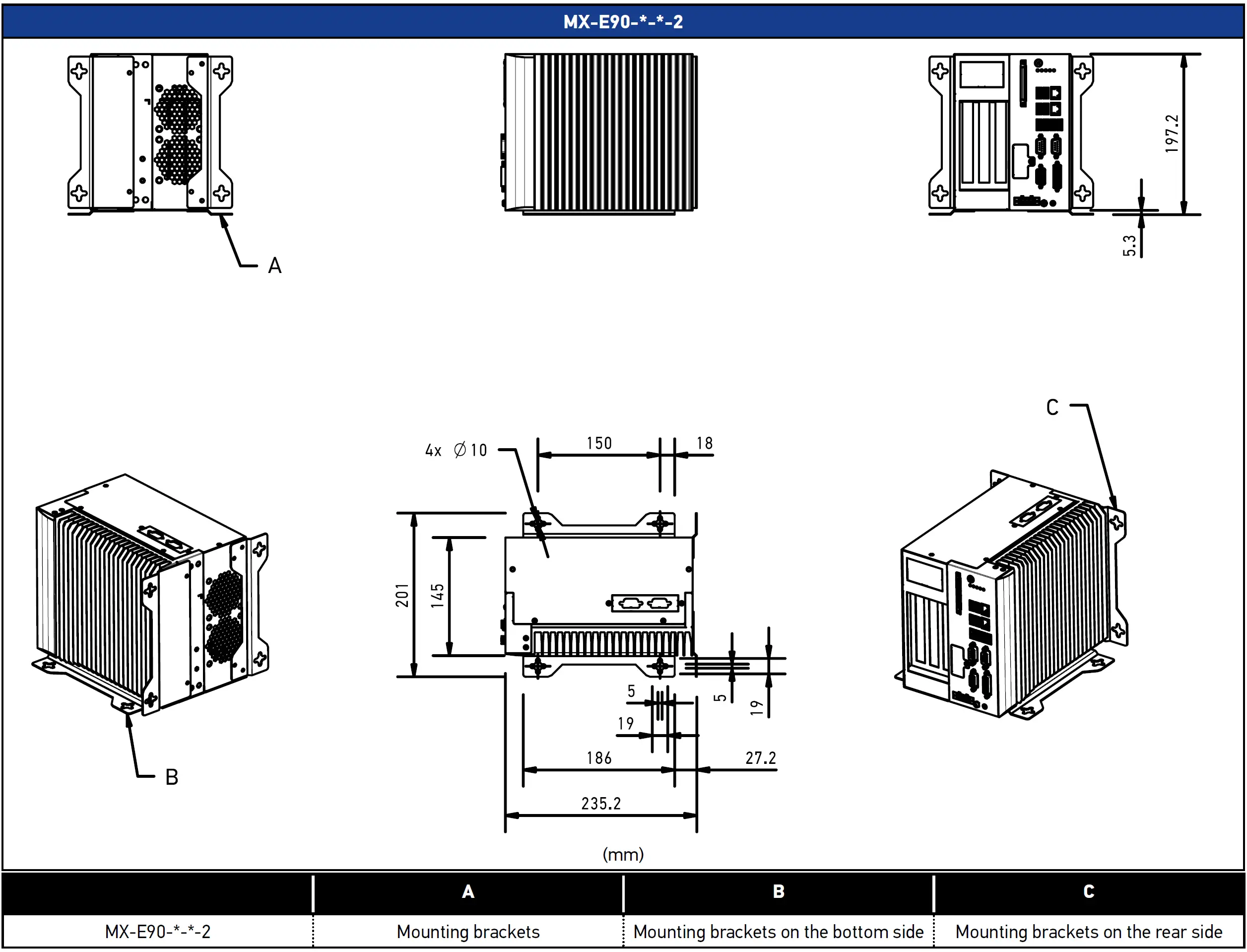

MECHANICAL DRAWINGS

Download Datasheet
